Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001
Model Number: Tungsten Carbide Bushing
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20workmonth
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5tons/month
Type: |
Tungsten Carbide Bushing |
Size: |
Cusomized |
Material: |
Tungsten Carbide |
Shape: |
OEM ODM |
Other Name: |
Flat Tungsten Ring |
Feature: |
High Strength,hardness,wear Resistance |
Type: |
Tungsten Carbide Bushing |
Size: |
Cusomized |
Material: |
Tungsten Carbide |
Shape: |
OEM ODM |
Other Name: |
Flat Tungsten Ring |
Feature: |
High Strength,hardness,wear Resistance |

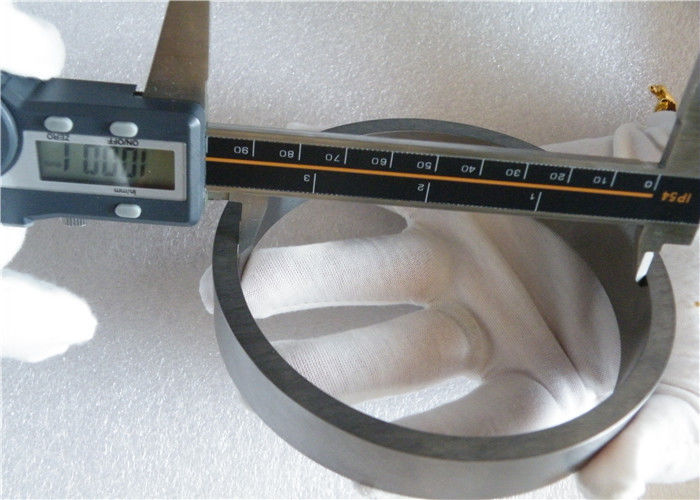

Custom Made Tungsten Carbide Bushing , Flat Tungsten Ring 14.7 G/Cm³
Tungsten Carbide Bushing Advantage
Tungsten carbide rollers possess good thermal conduction property.Compared with other materials ,it is much better in term of heat-resistance,resistance and strength.Its hardness reduce a litte under the condition of high temperature.
Tungsten carbide products in LIHE:
* Tungsten carbide mechanical seal rings. * Tungsten carbide bush, sleeve and nozzles. * Tungsten carbide bars/rods/strips/plates. * Tungsten carbide cutting tools/milling tools/inserts. * Tungsten carbide moulds/dies. * Tungsten carbide balls and seats. * Tungsten carbide saw blade cutter/cutter heads. * Other customized tungsten carbide products.
Grades recommended:
Nickle binder grades
| Grade | Density(g/cm³) | Hardness(HRA) | TRS(N/mm²) |
| YN6 | 14.7 | 89.5 | 1460 |
| YN6X | 14.8 | 90.5 | 1400 |
| YN6A | 14.8 | 91 | 1480 |
| YN8 | 14.6 | 88.5 | 1710 |
Cobalt binder grades
| Grade | Density(g/cm³) | Hardness(HRA) | TRS(N/mm²) |
| YG6 | 14.8 | 90 | 1520 |
| YG6X | 14.9 | 91 | 1450 |
| YG6A | 14.9 | 92 | 1540 |
| YG8 | 14.7 | 89.5 | 1750 |
| YG12 | 14.2 | 88 | 1810 |
| YG15 | 14 | 87 | 2050 |
| YG20 | 13.5 | 95.5 | 2450 |
