Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20workmonth
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5tons/month
Model Number: |
Tungsten Carbide Roller |
Dimensions: |
Current And Customized |
Surface: |
Finished |
Shape: |
Round |
Advantage: |
Durable |
Feature: |
High Strength,hardness,wear Resistance |
Service: |
OEM ODM |
Color: |
Grey |
Model Number: |
Tungsten Carbide Roller |
Dimensions: |
Current And Customized |
Surface: |
Finished |
Shape: |
Round |
Advantage: |
Durable |
Feature: |
High Strength,hardness,wear Resistance |
Service: |
OEM ODM |
Color: |
Grey |

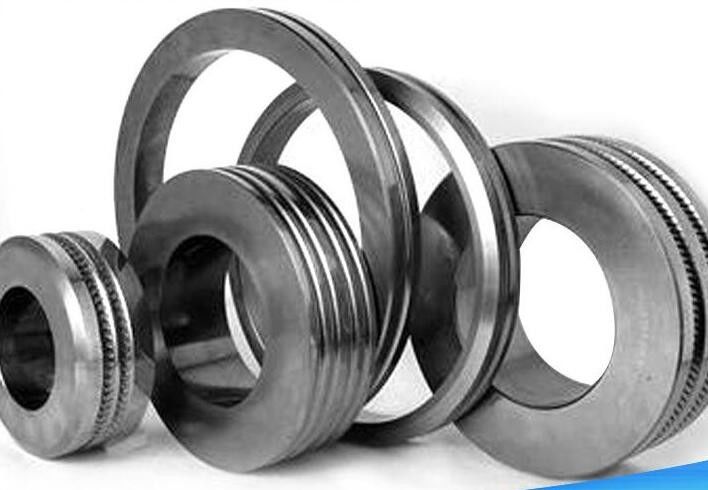

Cemented Tungsten Carbide Rings Good Wear Resistance For Rolling Mills
Description of the tungsten carbide roll
Carbide rolls are widely used in metal forming, especially in hot rolling industry mainly for intermediate and last finishing stands to ensuring superior surface finish and dimensional stability of processed metal products. Rolls are also commonly used for wire flattening, de-scaling and straightening applications.
Recommended Grade:
| Grade | Chemical Composition | Mechanical Properties | |||
| WC(%) | Co+Ni+Cr(%) | Density(g/cm³) | Hardness (>=HRA) | TRS (>=MPA) | |
| YGH30 | 85 | 15 | 14.02 | 84.9 | 2700 |
Other grades would be recommended according to your requirements.
Dimension
| Size | Diameter(mm) | Bore(mm) | Height(mm) |
| CR-125*82*15 | 125 | 82 | 15 |
| CR-140.8*90*15 | 140 | 90 | 15 |
| CR-145*95*15 | 145 | 95 | 15 |
| CR-145.8*90*15 | 145 | 90 | 15 |
| CR-150*90*15 | 150 | 90 | 15 |
| CR-150*95*15 | 150 | 95 | 15 |
| CR-180*125*18 | 180 | 125 | 18 |
Finished size(mm)
| Radial run-out of groove | Radial run-out of periphery | End face runout | Surface parallelism | Inner hole cylindricity |
| 0.013 | 0.013 | 0.01 | 0.01 | 0.01 |
Finished size with the tolerance(mm):
| OD | Tolerance | ID | Tolerance | H | Tolerance |
| <=125 | 1 | <=90 | 0.0/+0.02 | <=20 | -1 |
| >125~180 | 1 | >90~95 | 0.0/+0.02 | >20 | -1 |
| >180~250 | 1 | >95 | 0.0/+0.02 | ---- | -1 |
| >250 | 1 | ----- | 0.0/+0.02 | ----- | -1 |
