                                                                                                                                                                                                                                                                                                                                                                                                                tungsten carbide roll rings, tungsten carbide bushing


Place Of Origin::	Hunan, China (Mainland)	Brand Name::	LMM Tungsten Carbide Roller
Model Number::	LMM0126 Tungsten Carbide Rings Rolls	Application::	High Speed Wire
Shape::	Round	Material::	Wc-Co And Wc-Co-Ni-Cr
Dimensions::	10-100mm	Bending Strength::	2200Mpa
Chemical Composition::	Desgin	Product Name:	Dimensions And Precision Of Finished Carbide Roll Rings
Impact Toughness:	(4-6)*106J/m^2

Place Of Origin::	Hunan, China (Mainland)
Brand Name::	LMM Tungsten Carbide Roller
Model Number::	LMM0126 Tungsten Carbide Rings Rolls
Application::	High Speed Wire
Shape::	Round
Material::	Wc-Co And Wc-Co-Ni-Cr
Dimensions::	10-100mm
Bending Strength::	2200Mpa
Chemical Composition::	Desgin
Product Name:	Dimensions And Precision Of Finished Carbide Roll Rings
Impact Toughness:	(4-6)*106J/m^2

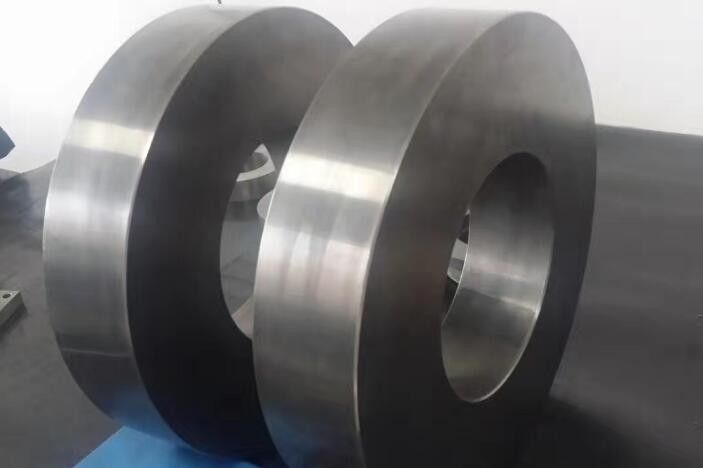

High Wear Resistance Tungsten Carbide Rings With High Corrosion Resistance

High Wear Resistance Tungsten Carbide Rings With High Corrosion Resistance

Product Description

1, OEM and ODM was accepted
2, Best service and quality
3, High precision tolerance

4, High corrosion resistance & high wear resisting

Advantage of the material tungsten carbide:

Tungsten carbide rollers possess good thermal conduction property.

Compared with other materials ,it is much better in term of heat-resistance,

wear-resistance and strength. Its hardness reduce a litte under the condition of high temperature.

Grade	Chemical composition		Mechanical properties				Physical properties
	Chemical composition		Mechanical properties				Physical properties
	Co+Ni %	WC %	Hardness HRA	Transveres rupture strength (Sample B) MPa	Compressive Strength MPa	Young^'s modulus of elasticty KN/mm²	Density g/cm³	Thermal conductivity Cal/cm sec/℃



YGH20	10	90	≧86.0	≧2500	3500	560	14.2-14.5	0.2
YGH25	12	88	≧84.0	≧2300	3400	550	14.0-14.3	0.21
YGH30	15	85	≧83.5	≧2520	3300	540	13.8-14.2	0.2
YGH40	18	82	≧83.0	≧2570	3200	500	13.4-13.9	0.19
YGH45	20	80	≧82.0	≧2570	3100	480	13.3-13.9	0.18
YGH55	26	74	≧81.0	≧2570	3000	450	12.6-13.2	0.17
YGR20	10	90	≧85.0	≧2400	3400	550	14.2-14.8	0.2
YGR25	12.5	87.5	≧83.0	≧2270	3300	540	14.0-14.3	0.22
YGR30	15	85	≧83.0	≧2360	3200	530	13.8-14.3	0.2
YGR40	18	82	≧82.0	≧2400	3200	430	13.5-13.9	0.2
YGR45	20	80	≧80.5	≧2250	3000	480	13.4-13.9	0.18
YGR55	25	75	≧79.0	≧2400	2800	420	12.9-13.4	0.17
YGR60	30	70	≧78.5	≧2200	2600	300	12.6-13.1	0.16

Grade	Recommended applications
YGH20	Maximum hardness ,excellent wear resistance in the series.Used in the last 1-2 stands of good high speed line mills for rolling common and hard bars.
YGH25	Higher wear resistance,moderate impact resistance in the series.Used in the last 1-3 stands of good high speed line mills for rolling common and hard bars.
YGH30	Moderate wear resistance and impact resistance,good for general purposes.Used in the last 1-4 stands of finish rolling mills.
YGH40	Best for general purposes.Used in the front stands of good mills and in the rear stands of common mills.
YGH45	Used in the first and second stands of finish rolling mills and in the stands of prefinish rolling mills.For every stand of the rolling lines for low speed rolling,low precision and unstable operation.
YGH55	Maxmum binder content in YGH series,good toughness and crack resistance.Used in the stands of perfinish rolling mills and for rolling screw thead steel

Grade		Recommended application

YGR20		High wear resistance and corrosion resistance.Used in the last 1-2 stands of finish rolling mills.

YGR25		High wear resistance and corrosion resistance.Used in the last 1-3stands of finish rolling mills.

YGR30		Good toughness,wear resistance,corrosion resistance and crack resistance.Used in the middie and rear stands of finish rolling mills.

YGR40		Good toughness and thermal crack resistance,dood for general purposes.Used in the most stands of finish rolling mills and in the rear stands of common mills.

YGR45		Good toughness and thermal crack resistance,Used in the front stands of finish rolling mills.

YGR55		Good impact resistance.Used in the stands of prefinish rolling mills for hot rolling screw thread steel bars and they, can be machined with turning and milling.

YGR60		Good impact resistance and toughness. Used for hot rolling screw thread steel bars and in the first and second stands of prefinish rolling mills.

The allowable deviation of carbide roll rings

Radial runoutofgroove ≤ 0.013mm
Radial runout of periphery ≤0.01 3mm
End face runout ≤ 0.02mm
End face planeness ≤ 0 .01mm
End face parallelism ≤ 0.01mm
Innerholecylindericit ≤ 0.01mm

Roughness of carbide rolls

inner hole roughness 0.4 u m
periphery roughness0.8 u m
end face roughness 0.4 u m
