Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20workmonth
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5tons/month
Model Number: |
Various |
Raw Material: |
100% Virgin Tungsten Carbide |
Shape: |
Ring |
Specification: |
Customized |
Feature: |
Wear Resistance |
Application:: |
Oil Application |
Model Number: |
Various |
Raw Material: |
100% Virgin Tungsten Carbide |
Shape: |
Ring |
Specification: |
Customized |
Feature: |
Wear Resistance |
Application:: |
Oil Application |

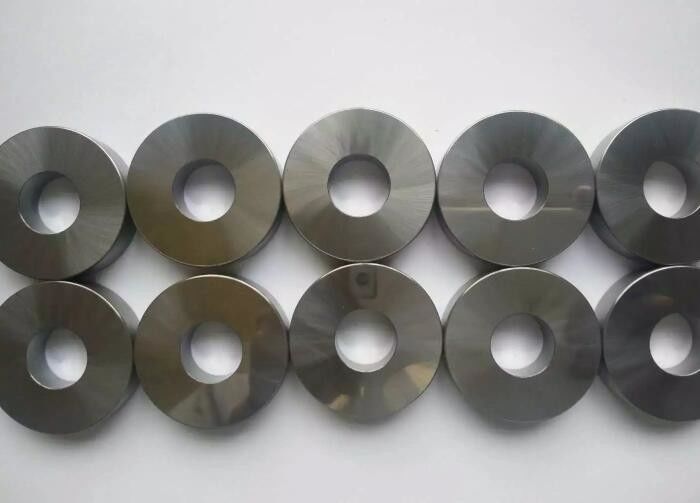

High Strength Tungsten Carbide Seat With Good Temperature Resistance
Specification:
1. High strength, high wear resistance, high precision, good temperature resistance and good corrosion resistance.
2. Mainly used for the sealing of valves of oil pumps in petroleum industry`s containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells, etc.
3. Precision machined cemented carbide balls of other grades and specifications are also available based on customers` demands.
4. Compatible high precision valve seats can also be made.
Cobalt binder grades
| Grade | Density(g/cm³) | Hardness(HRA) | TRS(N/mm²) |
| YG6 | 14.8 | 90 | 1520 |
| YG6X | 14.9 | 91 | 1450 |
| YG6A | 14.9 | 92 | 1540 |
| YG8 | 14.7 | 89.5 | 1750 |
| YG12 | 14.2 | 88 | 1810 |
| YG15 | 14 | 87 | 2050 |
| YG20 | 13.5 | 95.5 | 2450 |
Nickle binder grades
| Grade | Density(g/cm³) | Hardness(HRA) | TRS(N/mm²) |
| YN6 | 14.7 | 89.5 | 1460 |
| YN6X | 14.8 | 90.5 | 1400 |
| YN6A | 14.8 | 91 | 1480 |
| YN8 | 14.6 | 88.5 | 1710 |
