Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20workmonth
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5tons/month
Dimensions: |
Current And Customized |
Surface: |
Polished / Ground |
Material: |
Tungsten Carbide |
Advantage: |
High Wear Resistance, Corrosion Resisting |
Size: |
Optional |
Style: |
Mechanical Seal |
Dimensions: |
Current And Customized |
Surface: |
Polished / Ground |
Material: |
Tungsten Carbide |
Advantage: |
High Wear Resistance, Corrosion Resisting |
Size: |
Optional |
Style: |
Mechanical Seal |

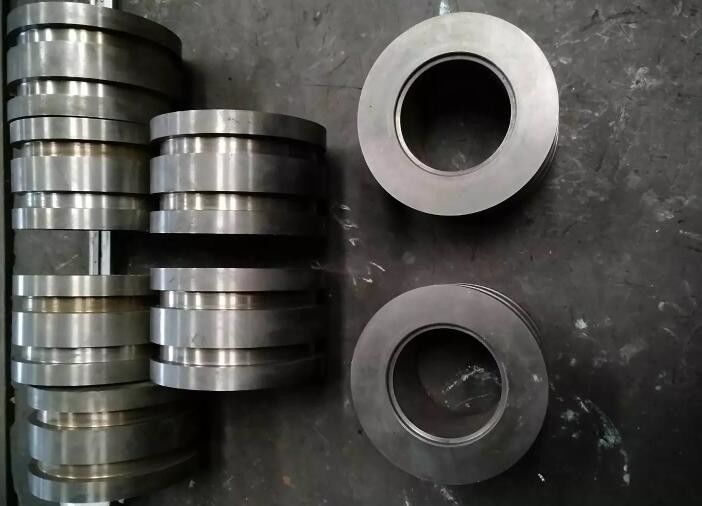

High Hardness Tungsten Carbide Rings Corrosion Resistant Custom Made Available
Features of Tungsten carbide products
a. Material:100% virgin raw material .
b. Grade:Various grades for choice
c. Advanced production equipments and testing equipments
d. Precision Ground and polished
e. High wear resistance,high hardness and impact toughness
f. Advanced technology , automatic pressing,HIP sintering and precision grinding .
Available Dimensions
| Type | Dimension | Type | Dimension | ||||
| D(mm) | D(mm) | H(mm) | D(mm) | D(mm) | H(mm) | ||
| HR-156×94×70 | 156 | 92 | 62 | HR-212 ×120 ×60 | 212 | 120 | 60 |
| HR-156×87×62 | 156 | 87 | 61 | HR-228.3×126×72 | 228.3 | 126 | 72 |
| HR-158.8×87.32×62 | 158.8 | 87.32 | 62 | HR-228×135×72 | 228 | 135 | 72 |
| HR-170.66×95×70 | 170.66 | 95 | 70 | HR-228×130×72 | 228 | 130 | 72 |
| HR-170.66×95×57.35 | 170.66 | 95 | 57.35 | HR-228.34×130×44.476 | 228.34 | 130 | 44.476 |
| HR-180×87.32×72 | 180 | 87.32 | 72 | HR-285×160×95 | 285 | 160 | 95 |
| HR-180×120.65×72 | 180 | 120.65 | 72 | HR-285×160×70 | 285 | 160 | 70 |
| HR-210.5×120.65×72 | 228.3 | 120.65 | 72 | HR-300×160×70 | 300 | 160 | 70 |
Other dimensions can be customized upon request
