Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20workmonth
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5tons/month
Name: |
Tungsten Carbide Roller |
Size: |
Cusomized |
Material: |
Tungsten Carbide |
Style: |
Mechanical Seal |
Function: |
Sealing Effect |
Feature: |
Sealing Performance |
Name: |
Tungsten Carbide Roller |
Size: |
Cusomized |
Material: |
Tungsten Carbide |
Style: |
Mechanical Seal |
Function: |
Sealing Effect |
Feature: |
Sealing Performance |

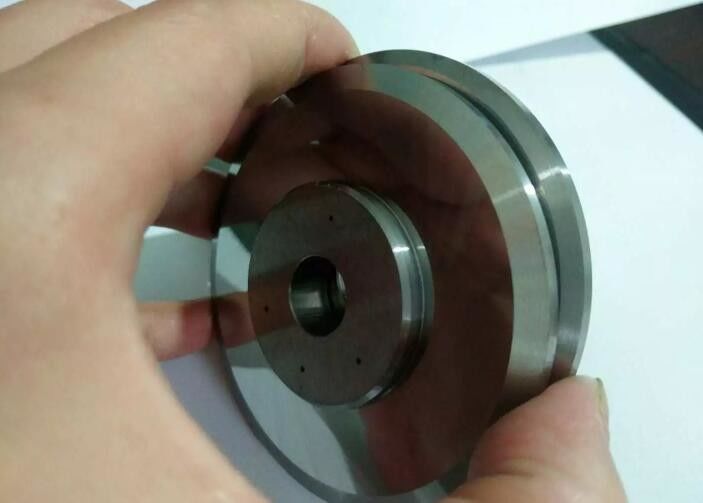

Mechanical Seals Tungsten Carbide Rings Size Customized With High Impact Toughness
Product Description
1,OEM and ODM was accepted
2, Best service and quality
3, High precision tolerance
4, High corrosion resistance & high wear resisting
Features of Tungsten carbide products
1. Material:100% virgin raw material .
2. Grade:Various grades for choice
3. Advanced production equipments and testing equipments
4. Precision Ground and polished
5. High wear resistance,high hardness and impact toughness
Advantage of the material tungsten carbide:
Tungsten carbide rollers possess good thermal conduction property.
Compared with other materials ,it is much better in term of heat-resistance, wear-resistance and strength.
Its hardness reduce a litte under the condition of high temperature.
Cemented carbide seal ring characteristics:
1. Cemented carbide seal ring has the characteristics of wear resistance, corrosion resistance, etc., and is widely used in petroleum, chemical and other fields of mechanical seals.
2. The products are finely ground, with extremely small dimensions and tolerances and superior sealing performance.
4. High strength and high hardness carbide material is used, no deformation and more resistant to pressure.
Available Dimensions
| Type | Dimension | Type | Dimension | ||||
| D(mm) | D(mm) | H(mm) | D(mm) | D(mm) | H(mm) | ||
| HR-156×94×70 | 156 | 92 | 62 | HR-212 ×120 ×60 | 212 | 120 | 60 |
| HR-156×87×62 | 156 | 87 | 61 | HR-228.3×126×72 | 228.3 | 126 | 72 |
| HR-158.8×87.32×62 | 158.8 | 87.32 | 62 | HR-228×135×72 | 228 | 135 | 72 |
| HR-170.66×95×70 | 170.66 | 95 | 70 | HR-228×130×72 | 228 | 130 | 72 |
| HR-170.66×95×57.35 | 170.66 | 95 | 57.35 | HR-228.34×130×44.476 | 228.34 | 130 | 44.476 |
| HR-180×87.32×72 | 180 | 87.32 | 72 | HR-285×160×95 | 285 | 160 | 95 |
| HR-180×120.65×72 | 180 | 120.65 | 72 | HR-285×160×70 | 285 | 160 | 70 |
| HR-210.5×120.65×72 | 228.3 | 120.65 | 72 | HR-300×160×70 | 300 | 160 | 70 |
Other dimensions can be customized upon request
