Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20workmonth
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5tons/month
Name: |
Tungsten Carbide Sleeve |
Model Number: |
Various |
Raw Material: |
100% Virgin Tungsten Carbide |
Usage: |
Machinery Tools |
Shape: |
Round |
Feature: |
Waterproof |
Name: |
Tungsten Carbide Sleeve |
Model Number: |
Various |
Raw Material: |
100% Virgin Tungsten Carbide |
Usage: |
Machinery Tools |
Shape: |
Round |
Feature: |
Waterproof |

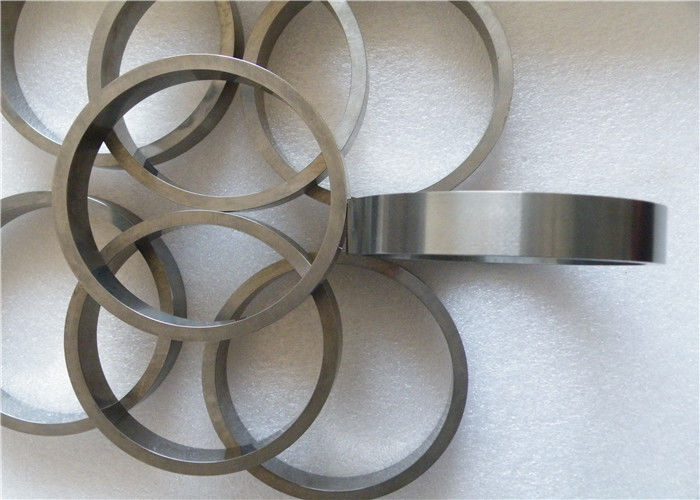

Machinery Tools Tungsten Carbide Sleeve , Waterproof Tungsten Wafer
Tungsten Carbide Sleeve Hard Facts
A: 1.Tungsten rings are the most wear resistant rings available on the planet.
2.Tungsten is about 10 times harder than 18K Gold, 5 times harder than tool steel, and 4 times harder than titanium.
3.Tungsten measures between 8.5 and 9.5 on the Mosh hardness scale. (Diamonds are a 10 - the highest.)
4. Due to their extreme hardness, Tungsten Rings will hold their shape and shine longer than any ring on the market.
5.Tungsten rings have been referred to as the "Permanently Polished Rings".
6. Tungsten rings will NOT bend.
7. In the event of an emergency, a ring can be removed by a medical professional.
8. Each tungsten ring is individually hand crafted using assorted diamond abrasives and poly crystalline diamond tooling.
9. Our tungsten rings are cobalt free.
Tungsten Carbide Sleeve Features:
1. High wear resistance grade
2. Precise control on dimension
3. Last longer due to its special properties to suit application
Cobalt binder grades
| Grade | Density(g/cm³) | Hardness(HRA) | TRS(N/mm²) |
| YG6 | 14.8 | 90 | 1520 |
| YG6X | 14.9 | 91 | 1450 |
| YG6A | 14.9 | 92 | 1540 |
| YG8 | 14.7 | 89.5 | 1750 |
| YG12 | 14.2 | 88 | 1810 |
| YG15 | 14 | 87 | 2050 |
| YG20 | 13.5 | 95.5 | 2450 |
Nickle binder grades
| Grade | Density(g/cm³) | Hardness(HRA) | TRS(N/mm²) |
| YN6 | 14.7 | 89.5 | 1460 |
| YN6X | 14.8 | 90.5 | 1400 |
| YN6A | 14.8 | 91 | 1480 |
| YN8 | 14.6 | 88.5 | 1710 |
