Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper,then paper boxs
Delivery Time: 15-20workmonth
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5tons/month
Brand Name:: |
TDC |
Size: |
Customer's Reuqest |
Feature: |
Wear Resistance |
Product Name: |
Tungsten Carbide Roll Rings |
Shape: |
Round |
Physical Performan: |
High Hardness, Wear Resistance |
OEM&ODM: |
Acceptable |
Application: |
Industry |
Brand Name:: |
TDC |
Size: |
Customer's Reuqest |
Feature: |
Wear Resistance |
Product Name: |
Tungsten Carbide Roll Rings |
Shape: |
Round |
Physical Performan: |
High Hardness, Wear Resistance |
OEM&ODM: |
Acceptable |
Application: |
Industry |

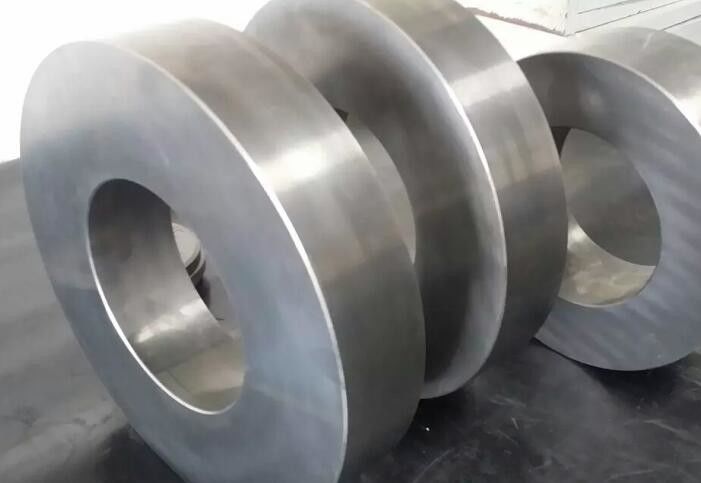

Tungsten Carbide Roll Rings Size Customized For Industrial Applications
Tungsten Carbide Rolls as the characters of high wear resistance, high corrosion resistance and good compressive properties which is an important parts in the steel bar and wire rod rolling. The rolls are primarily applied in high speed wire line, Kocks three roll mill, seamless pipe stretch reducing mill, three dimensional rolls for cold-rolled ribbed steel bar, and composite roll for hot-rolled bar screw thread steel etc.
Advantages
1) Professional advice for the application problems.
2) Survey Email of products usage will be sent timely to listen your feedback.
3) Factory have many years manufacturing history.
4) OEM, we can provide customize service include products and materials.
5) Sample for test with factory price.
Application:
Carbide rolls are widely used in metal forming, especially in hot rolling industry mainly for intermediate and last finishing stands to ensuring superior surface finish and dimensional stability of processed metal products. Rolls are also commonly used for wire flattening, de-scaling and straightening applications.
Available Dimensions
| Type | Dimension | Type | Dimension | ||||
| D(mm) | D(mm) | H(mm) | D(mm) | D(mm) | H(mm) | ||
| HR-156×94×70 | 156 | 92 | 62 | HR-212 ×120 ×60 | 212 | 120 | 60 |
| HR-156×87×62 | 156 | 87 | 61 | HR-228.3×126×72 | 228.3 | 126 | 72 |
| HR-158.8×87.32×62 | 158.8 | 87.32 | 62 | HR-228×135×72 | 228 | 135 | 72 |
| HR-170.66×95×70 | 170.66 | 95 | 70 | HR-228×130×72 | 228 | 130 | 72 |
| HR-170.66×95×57.35 | 170.66 | 95 | 57.35 | HR-228.34×130×44.476 | 228.34 | 130 | 44.476 |
| HR-180×87.32×72 | 180 | 87.32 | 72 | HR-285×160×95 | 285 | 160 | 95 |
| HR-180×120.65×72 | 180 | 120.65 | 72 | HR-285×160×70 | 285 | 160 | 70 |
| HR-210.5×120.65×72 | 228.3 | 120.65 | 72 | HR-300×160×70 | 300 | 160 | 70 |
| Other dimensions can be customized upon request | |||||||
