Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20tons per month
Name: |
Tungsten Carbide Seal Rings |
Model Number:: |
LMM0126 Tungsten Carbide Rings Rolls |
Application:: |
High Speed Wire |
Shape:: |
Round |
Material:: |
Wc-Co And Wc-Co-Ni-Cr |
Dimensions:: |
10-100mm |
Bending Strength:: |
2200Mpa |
Chemical Composition:: |
Desgin |
Product Name: |
Dimensions And Precision Of Finished Carbide Roll Rings |
Impact Toughness: |
(4-6)*106J/m^2 |
Name: |
Tungsten Carbide Seal Rings |
Model Number:: |
LMM0126 Tungsten Carbide Rings Rolls |
Application:: |
High Speed Wire |
Shape:: |
Round |
Material:: |
Wc-Co And Wc-Co-Ni-Cr |
Dimensions:: |
10-100mm |
Bending Strength:: |
2200Mpa |
Chemical Composition:: |
Desgin |
Product Name: |
Dimensions And Precision Of Finished Carbide Roll Rings |
Impact Toughness: |
(4-6)*106J/m^2 |

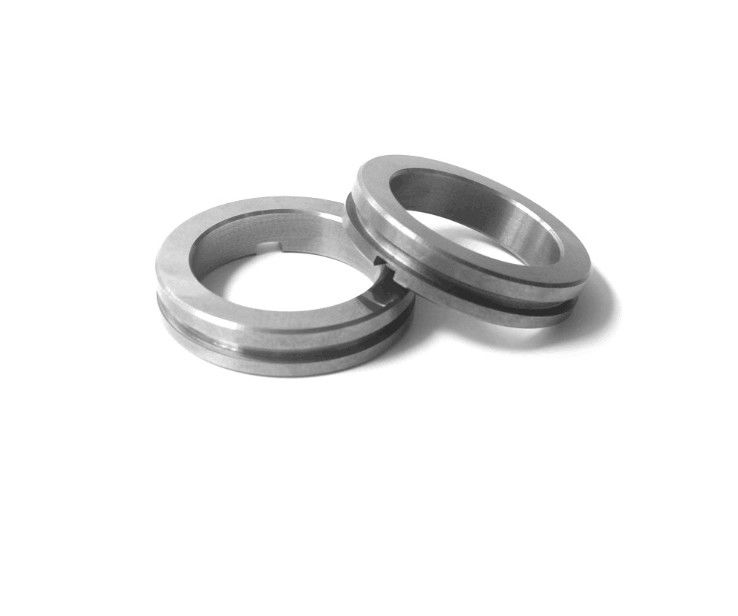

Tungsten Carbide Mechanical Seal Ring / Flat Tungsten Ring Dimensions Customized
Production Description
1.Tungsten carbide mold is in high precision,the tolerance can according yours.
2.For the shape,size,material etc. are made by customers' needs and requirements.
3. It has many advantages such as Wear resistant, Heat resistant and Corrosion resista and so on.
| Grade | Chemical composition |
Mechanical properties | Physical properties | |||||
Co+Ni % |
WC % |
Hardness HRA |
Transveres rupture strength (Sample B) MPa |
Compressive Strength MPa |
Young's modulus of elasticty KN/mm2 |
Density g/cm3 |
Thermal conductivity Cal/cm sec/℃ |
|
| YGH20 | 10 | 90 | ≧86.0 | ≧2500 | 3500 | 560 | 14.2-14.5 | 0.2 |
| YGH25 | 12 | 88 | ≧84.0 | ≧2300 | 3400 | 550 | 14.0-14.3 | 0.21 |
| YGH30 | 15 | 85 | ≧83.5 | ≧2520 | 3300 | 540 | 13.8-14.2 | 0.2 |
| YGH40 | 18 | 82 | ≧83.0 | ≧2570 | 3200 | 500 | 13.4-13.9 | 0.19 |
| YGH45 | 20 | 80 | ≧82.0 | ≧2570 | 3100 | 480 | 13.3-13.9 | 0.18 |
| YGH55 | 26 | 74 | ≧81.0 | ≧2570 | 3000 | 450 | 12.6-13.2 | 0.17 |
| YGR20 | 10 | 90 | ≧85.0 | ≧2400 | 3400 | 550 | 14.2-14.8 | 0.2 |
| YGR25 | 12.5 | 87.5 | ≧83.0 | ≧2270 | 3300 | 540 | 14.0-14.3 | 0.22 |
| YGR30 | 15 | 85 | ≧83.0 | ≧2360 | 3200 | 530 | 13.8-14.3 | 0.2 |
| YGR40 | 18 | 82 | ≧82.0 | ≧2400 | 3200 | 430 | 13.5-13.9 | 0.2 |
| YGR45 | 20 | 80 | ≧80.5 | ≧2250 | 3000 | 480 | 13.4-13.9 | 0.18 |
| YGR55 | 25 | 75 | ≧79.0 | ≧2400 | 2800 | 420 | 12.9-13.4 | 0.17 |
| YGR60 | 30 | 70 | ≧78.5 | ≧2200 | 2600 | 300 | 12.6-13.1 | 0.16 |
| Grade | Recommended applications |
| YGH20 | Maximum hardness ,excellent wear resistance in the series.Used in the last 1-2 stands of good high speed line mills for rolling common and hard bars. |
| YGH25 | Higher wear resistance,moderate impact resistance in the series.Used in the last 1-3 stands of good high speed line mills for rolling common and hard bars. |
| YGH30 | Moderate wear resistance and impact resistance,good for general purposes.Used in the last 1-4 stands of finish rolling mills. |
| YGH40 | Best for general purposes.Used in the front stands of good mills and in the rear stands of common mills. |
| YGH45 | Used in the first and second stands of finish rolling mills and in the stands of prefinish rolling mills.For every stand of the rolling lines for low speed rolling,low precision and unstable operation. |
| YGH55 | Maxmum binder content in YGH series,good toughness and crack resistance.Used in the stands of perfinish rolling mills and for rolling screw thead steel |
| Grade | Recommended application | |||||||
| YGR20 | High wear resistance and corrosion resistance.Used in the last 1-2 stands of finish rolling mills. | |||||||
| YGR25 | High wear resistance and corrosion resistance.Used in the last 1-3stands of finish rolling mills. | |||||||
| YGR30 | Good toughness,wear resistance,corrosion resistance and crack resistance.Used in the middie and rear stands of finish rolling mills. | |||||||
| YGR40 | Good toughness and thermal crack resistance,dood for general purposes.Used in the most stands of finish rolling mills and in the rear stands of common mills. | |||||||
| YGR45 | Good toughness and thermal crack resistance,Used in the front stands of finish rolling mills. | |||||||
| YGR55 | Good impact resistance.Used in the stands of prefinish rolling mills for hot rolling screw thread steel bars and they, can be machined with turning and milling. | |||||||
| YGR60 | Good impact resistance and toughness. Used for hot rolling screw thread steel bars and in the first and second stands of prefinish rolling mills. | |||||||
The allowable deviation of carbide roll rings
Radial runoutofgroove ≤ 0.013mm
Radial runout of periphery ≤0.01 3mm
End face runout ≤ 0.02mm
End face planeness ≤ 0 .01mm
End face parallelism ≤ 0.01mm
Innerholecylindericit ≤ 0.01mm
Roughness of carbide rolls
inner hole roughness 0.4 u m
periphery roughness0.8 u m
end face roughness 0.4 u m
