Name: |
Tungsten Carbide Buttons |
Material: |
100% Virgin Tungsten Carbide |
Feature: |
Good Wear Resistance; |
Color: |
Gray |
Dimension: |
Various Dimensions |
Application: |
Rock Drilling, Metal Drilling, Masonry Drilling Etc. |
Name: |
Tungsten Carbide Buttons |
Material: |
100% Virgin Tungsten Carbide |
Feature: |
Good Wear Resistance; |
Color: |
Gray |
Dimension: |
Various Dimensions |
Application: |
Rock Drilling, Metal Drilling, Masonry Drilling Etc. |

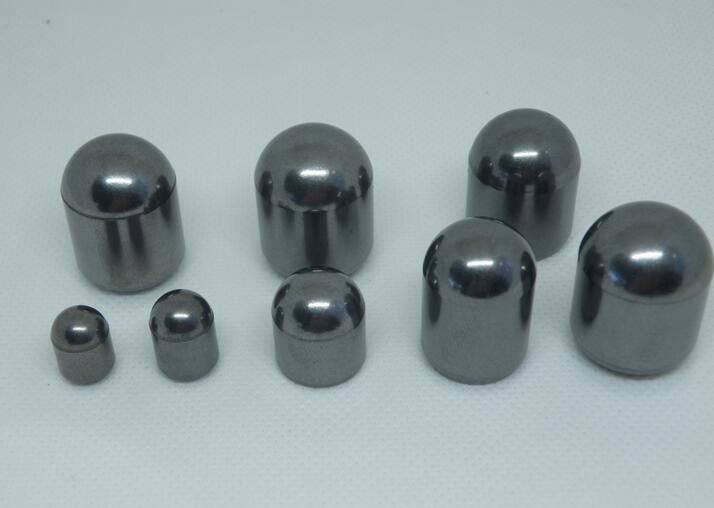

Mining Tools Tungsten Carbide Conical Drill Button Bit Various Dimensions
Product Description
Tungsten carbide buttons from our factory is reasonable in price and good in quality. They are with high toughness, good wear resistance and high hardness. Any of your requirements for Carbide button tips can be satisfied!
Application
Tungsten Carbide buttons are made from 100% Virgin Raw material of WC and CO. With high density, good wear resistance, and high bending strength.
Using high purity tungsten carbide powder, it has a better strength and hardness, thereby a longer service life. Taking isostatic pressing precision machine, our drill button has a uniform density, and do not break easily.
Sintered by over voltage sintering furnace, the carbide button are 24% more abrasive resistance.
Grinded by centerless grinder, it has precise measurement. It’s tightly welded, do not drop from drill.
It is using in making down the hole drill bit, ball nose drill bit, pillar drill bit lamp.
| Product Number | Basic Size(mm) | |||||||
| Diameter(D) | Height(H) | Ball Radius(SR) | ||||||
| SQ08212AS15 | 8.2 | 12 | 4.2 | |||||
| SQ09213AS17 | 9.2 | 13 | 4.6 | |||||
| SQ10214S20 | 10.2 | 14 | 5.2 | |||||
| SQ11215S21 | 11.2 | 15 | 6 | |||||
| SQ12217S18 | 12.2 | 17 | 6.6 | |||||
| SQ13219S20 | 13.2 | 19 | 6.7 | |||||
| SQ14322S10 | 14.3 | 22 | 7.2 | |||||
| SQ16324AS30 | 16.3 | 24 | 8.8 | |||||
| SQ18327S33 | 18.3 | 27 | 9.2 | |||||
| SQ19225D20 | 19.2 | 25 | 9.6 | |||||
