Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Product Name: |
Boron Carbide Nozzle |
Alloy Specification: |
K30 |
Material: |
Original Tungsten Carbide Material |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Application: |
Water Jet Cutting Machine |
Package: |
Paper Case To Every Pc,carton Out Wrapped |
Advantage: |
High Precision Good Wear Resistance |
Feature: |
High Hardness |
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |
Product Name: |
Boron Carbide Nozzle |
Alloy Specification: |
K30 |
Material: |
Original Tungsten Carbide Material |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Application: |
Water Jet Cutting Machine |
Package: |
Paper Case To Every Pc,carton Out Wrapped |
Advantage: |
High Precision Good Wear Resistance |
Feature: |
High Hardness |
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |

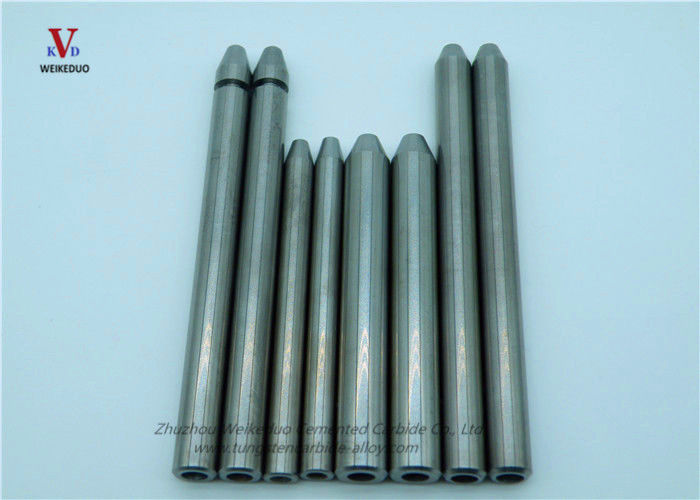

High Hardness Boron Carbide Nozzle / High Pressure Water Jet Nozzles
Boron Carbide Nozzle Feature
the interior is designed for a large flow channel to minimize liquid blocking screw nozzle to produce solid (hollow) conical spray, and the droplets are relatively rough.
Boron Carbide Nozzle spcifications:
Use superfine nanometer tungsten carbide particles, the wear-resisting performance to the next level, superior
wear resistance makes it far beyond the ordinary tungsten carbide,The service life of the nozzle.Cobalt
content of less than 0.6%, density of 15.45 g/cm3 ~ 15.6 g/cm3, bending 2000 mpa to 2400MPa.Super oxygen resistance, small thermal expansion coefficient, unique high hardness and density, far beyond the other similar products, the use of hard Alloy tube abrasion resistance stronger.
Sand tube due to high-speed abrasive particle erosion, its selection is very important.Sand tube material, in general, must have high hardness, high resistance Grinding, both be short of one cannot.Generally for tungsten carbide composite materials processing.Usually, cemented carbide, WC as the main
resistance,Grinding phase exists in the form of particles, CO, just as the binder.
Use: widely used in various types machine, WHP type, FLOW type, type JET, KMT, OMAX type, type WS.
Boron Carbide Nozzle application:
• Abrasive Waterjet
• Dry Blasting
• Wet Blasting
• Suction Blast
• Mirco Abrasive
• Scrubber
• Descaling
• Slurry Jet
• Spray Drying
•Centrifuge
Boron Carbide Nozzle Parameters
|
NO. |
model |
ΦD(mm) |
Φd1(mm) |
L(mm) |
θ° |
а° |
|
1 |
6.35*1.02*76.2 |
6.35 |
1.02 |
76.2 |
40 |
28 |
|
2 |
6.35*0.76*76.2 |
6.35 |
0.76 |
76.2 |
40 |
28 |
|
3 |
6.35*0.91*76.2 |
6.35 |
0.91 |
76.2 |
40 |
28 |
|
4 |
6.35*1.02*101.6 |
6.35 |
1.02 |
101.6 |
40 |
28 |
|
5 |
6.35*0.76*101.6 |
6.35 |
0.76 |
101.6 |
40 |
28 |
|
6 |
7.14*1.02*76.2 |
7.14 |
1.02 |
76.2 |
40 |
28 |
|
7 |
7.14*0.76*76.2 |
7.14 |
0.76 |
76.2 |
40 |
28 |
|
8 |
7.14*0.91*76.2 |
7.14 |
0.91 |
76.2 |
40 |
28 |
|
9 |
9.45*1.02*76.2 |
9.45 |
1.02 |
76.2 |
40 |
28 |
|
10 |
9.45*0.76*76.2 |
9.45 |
0.76 |
76.2 |
40 |
28 |
|
11 |
9.43*1.02*76.2 |
9.43 |
1.02 |
76.2 |
40 |
28 |
|
12 |
9.43*0.76*76.2 |
9.43 |
0.76 |
76.2 |
40 |
28 |
|
13 |
9.45*1.02*79 |
9.45 |
1.02 |
79.0 |
40 |
28 |
|
14 |
9.45*0.76*79 |
9.45 |
0.76 |
79.0 |
40 |
28 |
|
15 |
9.45*1.02*101.6 |
9.45 |
1.02 |
101.6 |
40 |
28 |
|
16 |
9.45*0.76*101.6 |
9.45 |
0.76 |
101.6 |
40 |
28 |
|
17 |
9.45*1.02*120 |
9.45 |
1.02 |
120.0 |
40 |
28 |
|
18 |
9.45*0.76*120 |
9.45 |
0.76 |
120.0 |
40 |
28 |
|
19 |
7.14*1.02*101.6 |
7.14 |
1.02 |
101.6 |
40 |
28 |
|
20 |
7.14*0.76*101.6 |
7.14 |
0.76 |
101.6 |
40 |
28 |
|
21 |
7.14*0.89*101.6 |
7.14 |
0.89 |
101.6 |
40 |
28 |
|
22 |
7.14*0.91*101.6 |
7.14 |
0.91 |
101.6 |
40 |
28 |
|
23 |
7.14*1.02*120 |
7.14 |
1.02 |
120.0 |
40 |
28 |
|
24 |
7.14*0.76*120 |
7.14 |
0.76 |
120.0 |
40 |
28 |
|
25 |
8.0*1.02*101.6 |
8.00 |
1.02 |
101.6 |
40 |
28 |
|
26 |
8.0*0.76*101.6 Grooved sand pipe |
8.00 |
0.76 |
101.6 |
40 |
28 |
