Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Product Name: |
Tungsten Carbide Water Jet Nozzle |
Material: |
Tungsten Carbide |
Particle: |
Medium |
Surface Treatment: |
Plain/grinding/polished |
Application: |
Winding Machine |
Package: |
Paper Case To Every Pc,carton Out Wrapped |
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |
Product Name: |
Tungsten Carbide Water Jet Nozzle |
Material: |
Tungsten Carbide |
Particle: |
Medium |
Surface Treatment: |
Plain/grinding/polished |
Application: |
Winding Machine |
Package: |
Paper Case To Every Pc,carton Out Wrapped |
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |

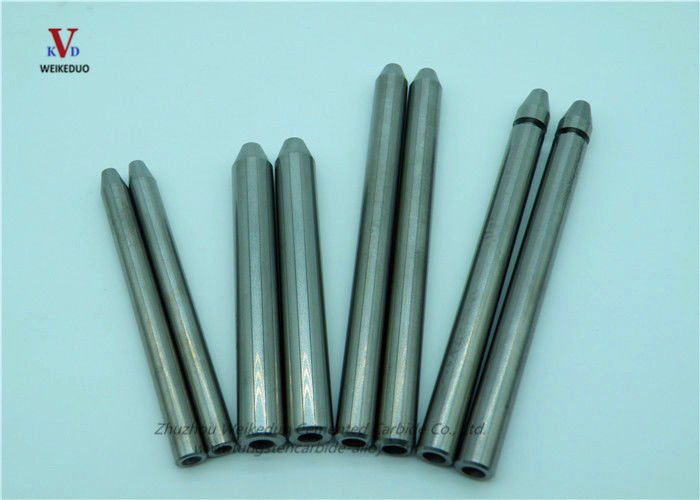

Straight Tungsten Carbide Blasting Nozzle , Carbide Jet Hose Nozzle
Tungsten Carbide Blasting Nozzle Introduction
Water jet nozzle is used for cutting stone,glass,plastic,metal so on hard material.
Tungsten Carbide Blasting Nozzle spcifications:
Life: 150-300 hours refers to the general statistical time under 350 Mpa working pressure. The service life of sand mixing pipe is determined not only by its own quality, but also by many factors, such as working pressure, water column, abrasive (pomegranate sand), knife head structure design and some human factors. Among them, the influence of water column on the life of sand mixing pipe is most easily ignored in practical application. water
Tungsten Carbide Blasting Nozzle application:
• Abrasive Waterjet
• Dry Blasting
• Mirco Abrasive
• Scrubber
• Descaling
• Slurry Jet
• Spray Drying
•Centrifuge
Parameters
|
NO. |
model |
ΦD(mm) |
Φd1(mm) |
L(mm) |
θ° |
а° |
|
1 |
6.35*1.02*76.2 |
6.35 |
1.02 |
76.2 |
40 |
28 |
|
2 |
6.35*0.76*76.2 |
6.35 |
0.76 |
76.2 |
40 |
28 |
|
3 |
6.35*0.91*76.2 |
6.35 |
0.91 |
76.2 |
40 |
28 |
|
4 |
6.35*1.02*101.6 |
6.35 |
1.02 |
101.6 |
40 |
28 |
|
5 |
6.35*0.76*101.6 |
6.35 |
0.76 |
101.6 |
40 |
28 |
|
6 |
7.14*1.02*76.2 |
7.14 |
1.02 |
76.2 |
40 |
28 |
|
7 |
7.14*0.76*76.2 |
7.14 |
0.76 |
76.2 |
40 |
28 |
|
8 |
7.14*0.91*76.2 |
7.14 |
0.91 |
76.2 |
40 |
28 |
|
9 |
9.45*1.02*76.2 |
9.45 |
1.02 |
76.2 |
40 |
28 |
|
10 |
9.45*0.76*76.2 |
9.45 |
0.76 |
76.2 |
40 |
28 |
|
11 |
9.43*1.02*76.2 |
9.43 |
1.02 |
76.2 |
40 |
28 |
|
12 |
9.43*0.76*76.2 |
9.43 |
0.76 |
76.2 |
40 |
28 |
|
13 |
9.45*1.02*79 |
9.45 |
1.02 |
79.0 |
40 |
28 |
|
14 |
9.45*0.76*79 |
9.45 |
0.76 |
79.0 |
40 |
28 |
|
15 |
9.45*1.02*101.6 |
9.45 |
1.02 |
101.6 |
40 |
28 |
|
16 |
9.45*0.76*101.6 |
9.45 |
0.76 |
101.6 |
40 |
28 |
|
17 |
9.45*1.02*120 |
9.45 |
1.02 |
120.0 |
40 |
28 |
|
18 |
9.45*0.76*120 |
9.45 |
0.76 |
120.0 |
40 |
28 |
|
19 |
7.14*1.02*101.6 |
7.14 |
1.02 |
101.6 |
40 |
28 |
|
20 |
7.14*0.76*101.6 |
7.14 |
0.76 |
101.6 |
40 |
28 |
|
21 |
7.14*0.89*101.6 |
7.14 |
0.89 |
101.6 |
40 |
28 |
|
22 |
7.14*0.91*101.6 |
7.14 |
0.91 |
101.6 |
40 |
28 |
|
23 |
7.14*1.02*120 |
7.14 |
1.02 |
120.0 |
40 |
28 |
|
24 |
7.14*0.76*120 |
7.14 |
0.76 |
120.0 |
40 |
28 |
|
25 |
8.0*1.02*101.6 |
8.00 |
1.02 |
101.6 |
40 |
28 |
|
26 |
8.0*0.76*101.6 Grooved sand pipe |
8.00 |
0.76 |
101.6 |
40 |
28 |
Details
