Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Product Name: |
Tungsten Carbide Nozzle |
Alloy Specification: |
K30 |
Particle: |
Medium |
Material: |
Cemented Tungsten Carbide |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Application: |
Dry Blasting , Wet Blasting |
Advantage: |
High Precision Good Wear Resistance |
Place Of Origin: |
Hunan, China (Mainland) |
Product Name: |
Tungsten Carbide Nozzle |
Alloy Specification: |
K30 |
Particle: |
Medium |
Material: |
Cemented Tungsten Carbide |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Application: |
Dry Blasting , Wet Blasting |
Advantage: |
High Precision Good Wear Resistance |
Place Of Origin: |
Hunan, China (Mainland) |

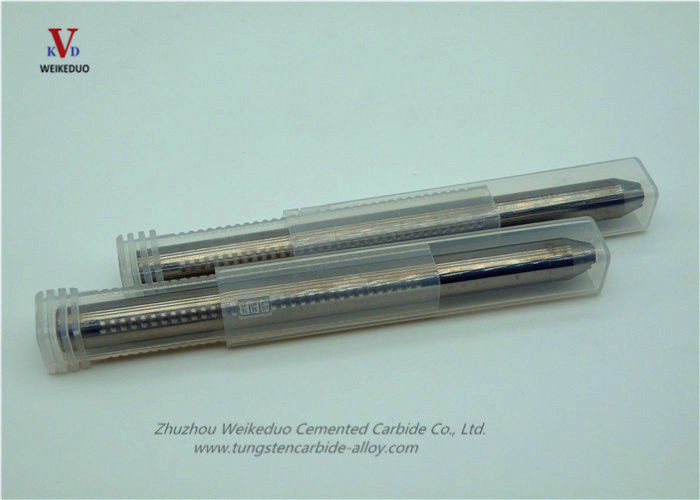

Cemented Tungsten Carbide Nozzle For Dry Blasting , Wet Blasting
Tungsten Carbide Nozzle Advantages
Made from 100% virgin raw material.
Produced with advanced equipments and process.
All products go through in process and final inspection.
Stable and continuous production ability.
carbide waterjet nozzles inner tube is high finish blast hole, and the use of our unique polishing technology pores to keep the hardness of inside waterjet nozzles is same as the outside of water jet nozzles. Comparing to other common tungsten water jet nozzles:higher hardness, higher density, higher wear resistance, higher stability.Consistent and long service life.
Tungsten Carbide Nozzle spcifications:
Use superfine nanometer tungsten carbide particles, the wear-resisting performance to the next level, superior
wear resistance makes it far beyond the ordinary tungsten carbide,The service life of the nozzle.Cobalt
content of less than 0.6%, density of 15.45 g/cm3 ~ 15.6 g/cm3, bending 2000 mpa to 2400MPa.Super oxygen resistance, small thermal expansion coefficient, unique high hardness and density, far beyond the other similar products, the use of hard Alloy tube abrasion resistance stronger.
Tungsten Carbide Nozzle application:
• Abrasive Waterjet
• Dry Blasting
• Wet Blasting
• Suction Blast
• Mirco Abrasive
Tungsten Carbide Nozzle Parameters
|
NO. |
model |
ΦD(mm) |
Φd1(mm) |
L(mm) |
θ° |
а° |
|
1 |
6.35*1.02*76.2 |
6.35 |
1.02 |
76.2 |
40 |
28 |
|
2 |
6.35*0.76*76.2 |
6.35 |
0.76 |
76.2 |
40 |
28 |
|
3 |
6.35*0.91*76.2 |
6.35 |
0.91 |
76.2 |
40 |
28 |
|
4 |
6.35*1.02*101.6 |
6.35 |
1.02 |
101.6 |
40 |
28 |
|
5 |
6.35*0.76*101.6 |
6.35 |
0.76 |
101.6 |
40 |
28 |
|
6 |
7.14*1.02*76.2 |
7.14 |
1.02 |
76.2 |
40 |
28 |
|
7 |
7.14*0.76*76.2 |
7.14 |
0.76 |
76.2 |
40 |
28 |
|
8 |
7.14*0.91*76.2 |
7.14 |
0.91 |
76.2 |
40 |
28 |
|
9 |
9.45*1.02*76.2 |
9.45 |
1.02 |
76.2 |
40 |
28 |
|
10 |
9.45*0.76*76.2 |
9.45 |
0.76 |
76.2 |
40 |
28 |
|
11 |
9.43*1.02*76.2 |
9.43 |
1.02 |
76.2 |
40 |
28 |
|
12 |
9.43*0.76*76.2 |
9.43 |
0.76 |
76.2 |
40 |
28 |
|
13 |
9.45*1.02*79 |
9.45 |
1.02 |
79.0 |
40 |
28 |
|
14 |
9.45*0.76*79 |
9.45 |
0.76 |
79.0 |
40 |
28 |
|
15 |
9.45*1.02*101.6 |
9.45 |
1.02 |
101.6 |
40 |
28 |
|
16 |
9.45*0.76*101.6 |
9.45 |
0.76 |
101.6 |
40 |
28 |
|
17 |
9.45*1.02*120 |
9.45 |
1.02 |
120.0 |
40 |
28 |
|
18 |
9.45*0.76*120 |
9.45 |
0.76 |
120.0 |
40 |
28 |
|
19 |
7.14*1.02*101.6 |
7.14 |
1.02 |
101.6 |
40 |
28 |
|
20 |
7.14*0.76*101.6 |
7.14 |
0.76 |
101.6 |
40 |
28 |
|
21 |
7.14*0.89*101.6 |
7.14 |
0.89 |
101.6 |
40 |
28 |
|
22 |
7.14*0.91*101.6 |
7.14 |
0.91 |
101.6 |
40 |
28 |
|
23 |
7.14*1.02*120 |
7.14 |
1.02 |
120.0 |
40 |
28 |
|
24 |
7.14*0.76*120 |
7.14 |
0.76 |
120.0 |
40 |
28 |
|
25 |
8.0*1.02*101.6 |
8.00 |
1.02 |
101.6 |
40 |
28 |
|
26 |
8.0*0.76*101.6 Grooved sand pipe |
8.00 |
0.76 |
101.6 |
40 |
28 |
