Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |
Model Number: |
7.14×1.02×76.2 |
OD: |
6/6.35/7.14/7.6/9.45 |
Type: |
Cuttting Tool |
Product Name:: |
Tungsten Carbide Sandblasting Nozzle Sandtube Waterjet Nozzle |
Material: |
Tungsten Carbide Material |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Application: |
Cut Metal Stone Granite Marble Ceramics Concrete |
Density: |
15.7g/cm3 |
Advantage: |
High Hardness,excellent Wear Resistan |
Feature: |
Consistent And Long Service Life |
Dimension: |
As Customer Require |
Color: |
Gold /silver |
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |
Model Number: |
7.14×1.02×76.2 |
OD: |
6/6.35/7.14/7.6/9.45 |
Type: |
Cuttting Tool |
Product Name:: |
Tungsten Carbide Sandblasting Nozzle Sandtube Waterjet Nozzle |
Material: |
Tungsten Carbide Material |
Surface Treatment: |
Plain/grinding/polished As Your Request |
Application: |
Cut Metal Stone Granite Marble Ceramics Concrete |
Density: |
15.7g/cm3 |
Advantage: |
High Hardness,excellent Wear Resistan |
Feature: |
Consistent And Long Service Life |
Dimension: |
As Customer Require |
Color: |
Gold /silver |

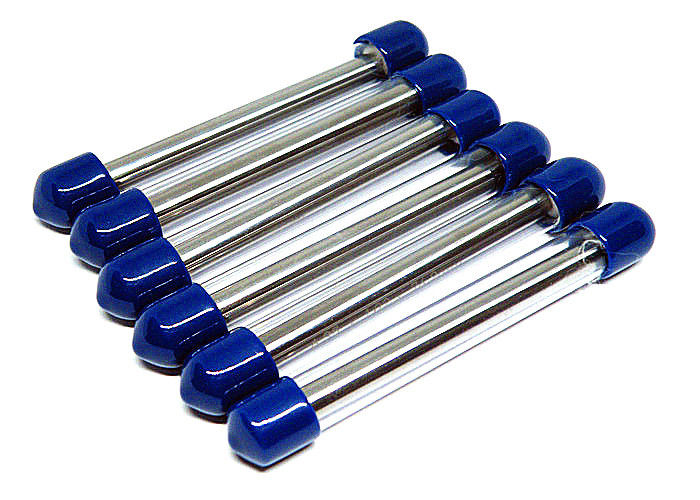

High Hardness and Wear Resistance Tungsten Carbide Water Jet Cutting Head Sand Pipe Mixed Nozzle
Waterjet nozzle.sand tube due to high-speed abrasive particle erosion, its selection is very important. Abrasive waterjet nozzle.sand tube material, in general, must have high hardness, high resistance Grinding.
Our tungsten carbide waterjet nozzles inner tube is high finish blast hole, and the use of our unique polishing technology pores to keep the hardness of inside waterjet nozzles is same as the outside of water jet nozzles. Comparing to other common tungsten water jet nozzles:higher hardness, higher density, higher wear resistance, higher stability.Consistent and long service life.
It can be compatible with most water jet cutting machine brand. We can also manufacture according to your requirements.
| D/mm | d/mm | L/mm |
| 6 | 0.76 | 76.2 |
| 6 | 1.02 | 76.2 |
| 6.35 | 0.5 | 76.2 |
| 6.35 | 0.76 | 76.2 |
| 6.35 | 1.02 | 76.2 |
| 7.14 | 0.76 | 76.2 |
| 7.14 | 1.02 | 76.2 |
| 7.6 | 0.76 | 76.2 |
| 7.6 | 1.02 | 76.2 |
| 9.45 | 0.76 | 76.2 |
| 9.45 | 1.02 | 76.2 |
sand blasting nozzle ‘s spcifications:
Use superfine nanometer tungsten carbide particles, the wear-resisting performance to the next level, superior
wear resistance makes it far beyond the ordinary tungsten carbide,The service life of the nozzle.Cobalt
content of less than 0.6%, density of 15.45 g/cm3 ~ 15.6 g/cm3, bending 2000 mpa to 2400MPa.Super oxygen resistance, small thermal expansion coefficient, unique high hardness and density, far beyond the other similar products, the use of hard Alloy tube abrasion resistance stronger.
Sand tube due to high-speed abrasive particle erosion, its selection is very important.Sand tube material, in general, must have high hardness, high resistance Grinding, both be short of one cannot.Generally for tungsten carbide composite materials processing.Usually, cemented carbide, WC as the main
resistance,Grinding phase exists in the form of particles, CO, just as the binder.
Use: widely used in various types machine, WHP type, FLOW type, type JET, KMT, OMAX type, type WS.
Why choose us ?
1. We are Integration of Industry and Trade manufacturing tungsten carbide series product,Widest product range, Best production capability, Best quality control, Best Service, Competitive price;
2. 100% QC inspection before shipment;
3.Feedback within 24 hours and Good English Communication;
4.Customized making according to your drawing papers;
5.Accept trial order and sample order;
6.Offer free samples under the condition of freight paid by customer;
7.Survey Email of products usage will be sent timely to listen your feedback,our aim is trying to make every customer satisfied and we both sides WIN-WIN
