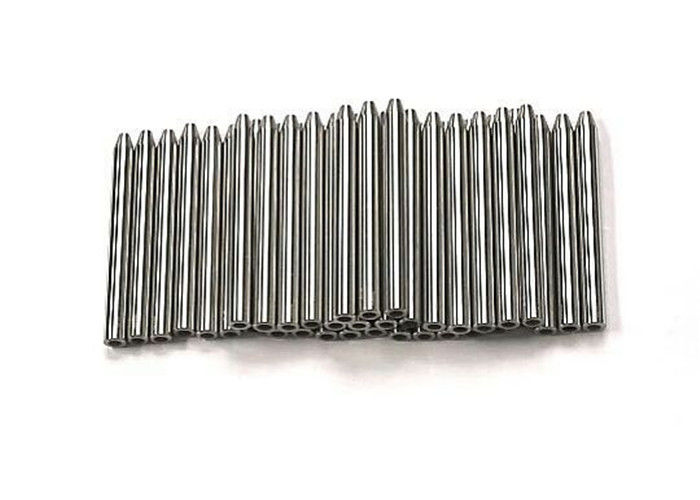

Tungsten carbide water jet nozzles with Life of 150-300 Hours

Tungsten carbide sand blasting nozzle ,water spray nozzles for ceramics

    Sand pipe, also known as abrasive nozzle, refers to the nozzle used for mixing abrasive and water at the jet outlet of high-pressure abrasive water jet machine tool. Because the internal jet condition is bad, the abrasive wear inside the sand pipe is very large after being accelerated, so it needs to be manufactured with very wear-resistant materials.

brief introduction
   Sand pipe is the key to form abrasive jet. For a long time, high pressure abrasive jet sand pipe has been puzzling the boundary of water jet in our country.
    So far, the service life of sand pipes and premixed abrasive nozzles used for cutting has not reached a satisfactory level.
Sand pipe structure is very simple, basically consists of two parts, namely conical population and columnar outlet, slightly different size, different uses, as shown in the figure.

    7.60x1.02x 76.20 mm, which means the outside diameter of the sand mixing pipe is 7.60 mm, the inner hole is 1.02 mm and the length is 88.9 mm. Among them, the size of the hole in the sand pipe is related to the cutting effect, so it is necessary to select suitable inner hole to achieve the cutting effect, such as 1.02mm and 0.76mm inner hole, which are most common in practical application. The outside diameter of sand mixing pipe is more arbitrary, which depends on the matching cutting tool head manufactured by the water cutting equipment factory. In order to realize monopoly, some equipment factories produce special cutting tool heads, which restrict the users in changing sand mixing pipes. At present, the common diameter of sand mixing pipe is 6.35 mm and 7.14 mm. In addition, the most common length of sand mixing pipe is 76.2 mm and 101.6 mm. Please choose a more suitable length of sand mixing pipe. In addition to the three values of outer diameter, inner diameter and length, the cone angle of sand mixing pipe is also a non-negligible specification. The more suitable angle of inner cone is, the more favorable it is for water-sand mixture to pass through the inner hole of sand mixing pipe smoothly. It has been proved by long-term practice that the inner cone of 25 degrees is right.
