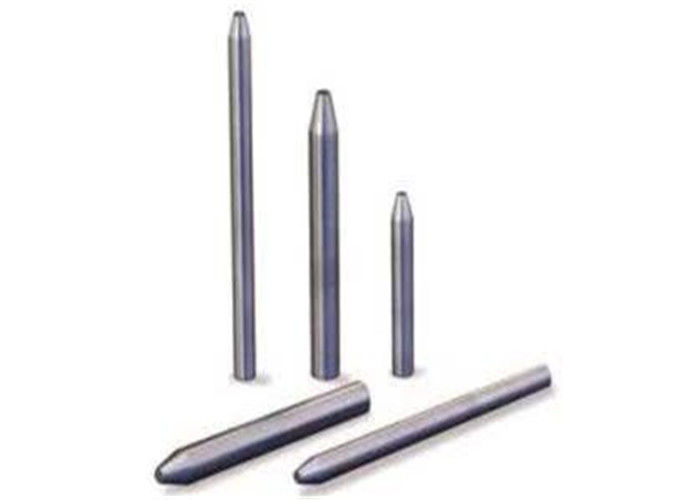

Tungsten carbide water jet nozzles with Life of 150-300 Hours

Tungsten carbide sand blasting nozzle ,water spray nozzles for ceramics

  Name: Sand mixing pipes are also called sand mixing pipes, sand pipes, sand knife pipes, sand knife pipes, sand nozzles, sand nozzles, sand nozzles or abrasive nozzles. English Nozzles or Mixing Tubes.
  Specification: There are many specifications for sand mixing pipe. It is mainly reflected by three values of outer diameter, inner diameter and length, namely D * D * L. for example

    6.35 x 1.02 x 76.20 mm, which means the outside diameter of the sand mixing pipe is 7.14 mm, the inner hole is 1.02 mm and the length is 88.9 mm. Among them, the size of the hole in the sand pipe is related to the cutting effect, so it is necessary to select suitable inner hole to achieve the cutting effect, such as 1.02mm and 0.76mm inner hole, which are most common in practical application. The outside diameter of sand mixing pipe is more arbitrary, which depends on the matching cutting tool head manufactured by the water cutting equipment factory. In order to realize monopoly, some equipment factories produce special cutting tool heads, which restrict the users in changing sand mixing pipes. At present, the common diameter of sand mixing pipe is 6.35 mm and 7.14 mm. In addition, the most common length of sand mixing pipe is 76.2 mm and 101.6 mm. Please choose a more suitable length of sand mixing pipe. In addition to the three values of outer diameter, inner diameter and length, the cone angle of sand mixing pipe is also a non-negligible specification. The more suitable angle of inner cone is, the more favorable it is for water-sand mixture to pass through the inner hole of sand mixing pipe smoothly. It has been proved by long-term practice that the inner cone of 25 degrees is right.

D6.35*d1.02*76.2mm water cutting sand blasting nozzle

sand blasting nozzle ,also name tungsten carbide water cutting,tungsten carbide sand tube.it is mainly using to cutting metal,ceramic,stone,glass or other materials.

  1.100% fresh material,we also coating tantalum tin for higher wear resistance.

  2. the common sizes are Φ6.35,Φ7.14,Φ7.6,Φ9.45 ect.

  3. long life,the hardness up to 96.5HRa,execellent wear resistance.

  4. also product according your sizes.
