Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: D7.14*d1.02*76.2
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |
Model Number: |
Carbide Water Jet Nozzle |
Type: |
Power Tool Parts, Inch And Metric |
Application: |
Wet Abrasive Blasting |
Material: |
100% Virgin Tungsten Carbide |
Usage: |
Cleaning |
Product Name: |
Solid Tungsten Carbide Sandblast Nozzles |
Size: |
All Dimensions |
Surface: |
As Sintering Or Polishing |
Advantage: |
Improved Production Rates And Efficiencies |
Place Of Origin: |
Hunan, China (Mainland) |
Brand Name: |
VKD |
Model Number: |
Carbide Water Jet Nozzle |
Type: |
Power Tool Parts, Inch And Metric |
Application: |
Wet Abrasive Blasting |
Material: |
100% Virgin Tungsten Carbide |
Usage: |
Cleaning |
Product Name: |
Solid Tungsten Carbide Sandblast Nozzles |
Size: |
All Dimensions |
Surface: |
As Sintering Or Polishing |
Advantage: |
Improved Production Rates And Efficiencies |
Tungsten carbide sand blasting nozzle ,water spray nozzles for ceramics
Our tungsten carbide waterjet nozzles inner tube is high finish blast hole, and the use of our unique polishing technology pores to keep the hardness of inside waterjet nozzles is same as the outside of water jet nozzles. Comparing to other common tungsten water jet nozzles:higher hardness, higher density, higher wear resistance, higher stability.Consistent and long service life.
Material: Nano Carbide / ultrafine grain tungsten carbide
Density: 15.7g/cm³
Rockwell hardness: 96HRA
Size: as below and also can cutomize any size
Welcome to contact us to get the sample to test our waterjet nozzles good quality!
Please let us know the clear size including OD,ID & length(mm).
• Abrasive Waterjet
• Dry Blasting
• Wet Blasting
• Suction Blast
• Mirco Abrasive
• Scrubber
• Descaling
• Slurry Jet
• Spray Drying
•Centrifuge

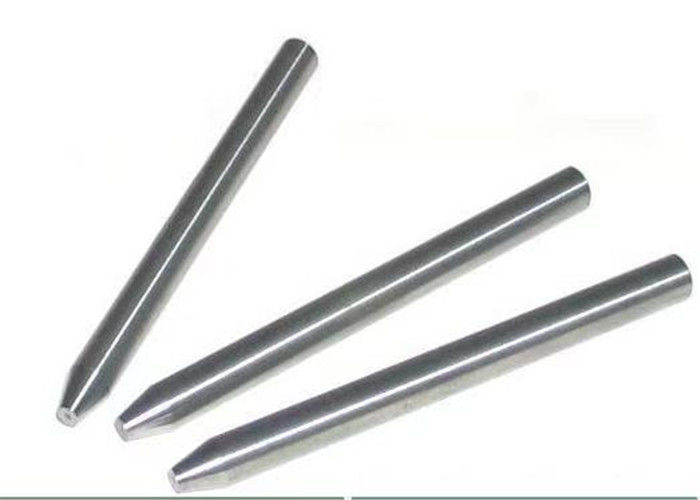

D7.14*d1.02*76.2mm water cutting sand blasting nozzle
sand blasting nozzle ,also name tungsten carbide water cutting,tungsten carbide sand tube.it is mainly using to cutting metal,ceramic,stone,glass or other materials.
1.100% fresh material,we also coating tantalum tin for higher wear resistance.
2. the common sizes are Φ6.35,Φ7.14,Φ7.6,Φ9.45 ect.
3. long life,the hardness up to 96.5HRa,execellent wear resistance.
4. also product according your sizes.
| Dimensional parameters of water cutter sand pipe | ||||
| ФD(mm) | Фd1(mm) | L(mm) | θ° | а° |
|
6.0 |
0.76 | 76.2 | 40 | 28 |
| 6.0 | 1.02 | 76.2 | 40 | 28 |
| 6.35 | 0.5 | 76.2 | 40 | 28 |
| 6.35 | 0.76 | 76.2 | 40 | 28 |
| 6.35 | 1.02 | 76.2 | 40 | 28 |
| 7.14 | 0.76 | 76.2 | 40 | 28 |
| 7.14 | 1.02 | 76.2 | 40 | 28 |
| 7.6 | 0.76 | 76.2 | 40 | 28 |
| 7.6 | 1.02 | 76.2 | 40 | 28 |
| 9.45 | 0.76 | 76.2 | 40 | 28 |
| 9.45 | 1.02 | 76.2 | 40 | 28 |
