Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: Plastic boxes, then cartons
Delivery Time: 15-20work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10ten thousand/month
Brand Name: |
VKD |
Diameter: |
4/6/10/12...... |
Material: |
Carbide |
Application: |
CNC Process |
Usage: |
General High Speed Cutting |
Flute: |
2/4/6...... |
HRC: |
60/65/68 |
Precision: |
High Precision |
TRANSPORT: |
Air |
Machine Type: |
CNC Milling Machine |
Brand Name: |
VKD |
Diameter: |
4/6/10/12...... |
Material: |
Carbide |
Application: |
CNC Process |
Usage: |
General High Speed Cutting |
Flute: |
2/4/6...... |
HRC: |
60/65/68 |
Precision: |
High Precision |
TRANSPORT: |
Air |
Machine Type: |
CNC Milling Machine |

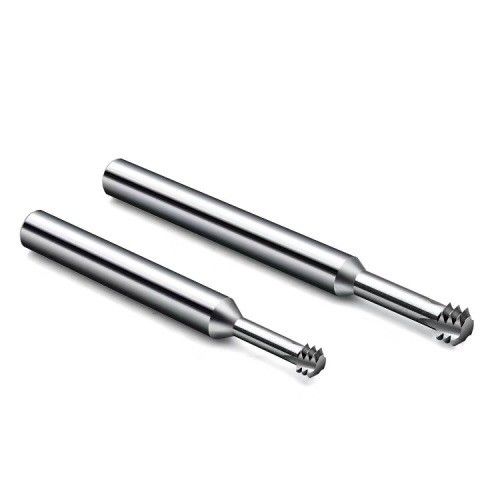

High Precision Carbide Roughing End Mills / Wave Edge Cutters With 1-4 Flutes
Thread end mill cutter Features:
1. Suitable for steels & cast iron
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
Thread end Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
| SIZE | D | d | H | L | Z |
| AL-3W-D6.0 | 6 | 6 | 16 | 50 | 3 |
| AL-3W-D8.0 | 8 | 8 | 20 | 60 | 3 |
| AL-3W-D10.0 | 10 | 10 | 25 | 75 | 3 |
| AL-3W-D12.0 | 12 | 12 | 30 | 75 | 3 |
| AL-3W-D16.0 | 16 | 16 | 45 | 100 | 3 |
| AL-3W-D20.0 | 20 | 20 | 45 | 100 | 3 |
| SIZE | D | d | H | L | Z |
| GM-4W-D6.0 | 6 | 6 | 16 | 50 | 4 |
| GM-4W-D7.0 | 7 | 8 | 20 | 60 | 4 |
| GM-4W-D8.0 | 8 | 8 | 20 | 60 | 4 |
| GM-4W-D9.0 | 9 | 10 | 22 | 75 | 4 |
| GM-4W-D10.0 | 10 | 10 | 25 | 75 | 4 |
| GM-4W-D11.0 | 11 | 12 | 26 | 75 | 4 |
| GM-4W-D12.0 | 12 | 12 | 30 | 75 | 4 |
| GM-4W-D16.0 | 16 | 16 | 45 | 100 | 4 |
| GM-4W-D20.0 | 20 | 20 | 45 | 100 | 4 |
Features:
Square/flat end mill specification
SQUARE/FLAT End Mills offered are solid carbide mill finish that is suitable for metal options like aluminum, non-ferrous, non-metallic metal. Featuring precision engineered flute design that provides for superior chip removal at high feed rates, these end mills also allows for achieving lower cutting forces as well as enhanced balance and finish support. These also help in providing enhanced functional control as well as in bringing reduction in chatter
Welcome your inquiry.
