Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO 14001:2015
Model Number: negotiate
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20tons per month
Model Number: |
Carbide Wear Parts |
Type: |
Custom-molded Sizes Accepted |
Material: |
100% Virgin Raw Material |
Dimensions: |
Customer's Request |
Surface: |
Blank Or Polished High Precision |
Hardness: |
86.5- 90.5 HRA |
TRS: |
2800-4000 N/mm3 |
Shape: |
Rectangular Solid, Cube, Sheet |
Model Number: |
Carbide Wear Parts |
Type: |
Custom-molded Sizes Accepted |
Material: |
100% Virgin Raw Material |
Dimensions: |
Customer's Request |
Surface: |
Blank Or Polished High Precision |
Hardness: |
86.5- 90.5 HRA |
TRS: |
2800-4000 N/mm3 |
Shape: |
Rectangular Solid, Cube, Sheet |

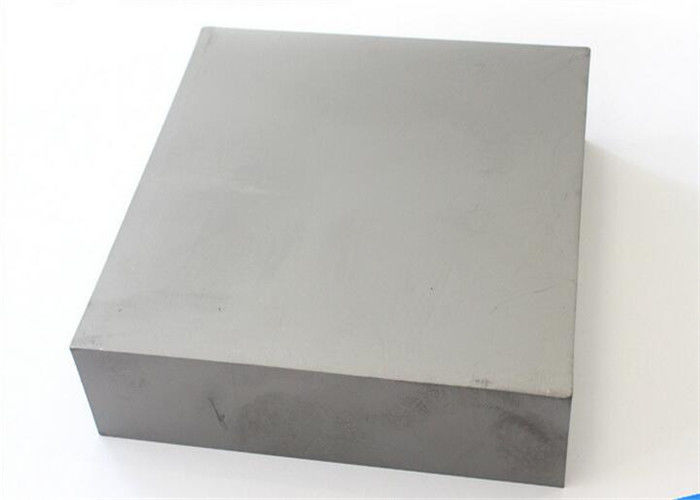

100% Virgin Raw Material Tungsten Carbide Sheet / Tungsten Carbide Wear Plates
Description
Cemented carbide plates, also called tungsten carbide plate, is made of tungsten carbide material, some are in square shapes, and some are in rectangle shapes. In mould factory , it act as mold core, insert, special shape punch, wear parts etc. Cemented carbide plates are also used for cutting metal wood and accessories.
The advantage of our carbide plates are smooth cutting surface and high cutting speed.
Tungsten Carbide Plates Application
1. Used for heat-resistant parts, wear-resistance parts, anti-shielding parts, anti-corrosion parts.
2. Used for making progressive press tools and progressive dies of high velocity ram machine.
3. Used for making connectors in electron industry, IC industry and semiconductor
4. Used for armature, stator, LED lead frame, EI silicon steel sheet and punching mould for hardware and standard parts.
Recommended Grade:
| Grade | Binding phase(%) | Grain Size(um) | Density(g/cm3) | Hardness(HRA) | TRS(Mpa) |
| VKD10 | 6.0 | 1.2 | 14.7 | 89 | 2400 |
| VKD20 | 15.0 | 1.2 | 13.9 | 86.5 | 3000 |
| VKD30 | 20.0 | 1.0 | 13.5 | 86.2 | 3100 |
| VKD40 | 15.0 | 0.8 | 13.95 | 89.5 | 3600 |
| VKD50 | 7.6 | 1.2 | 14.10 | 90.2 | 3000 |
| VKD05 | 6.0 | 2.4 | 14.80 | 90.0 | 3000 |
| VKD12 | 13.0 | 1.4 | 14.15 | 89.0 | 3500 |
| VKD15 | 15.0 | 1.2 | 13.85 | 88.2 | 3800 |
Size and Tolerance:
| L(mm) | W(mm) | H(mm) |
| 100 | 100 | 1.5~70 |
| 105 | 105 | 1.5~70 |
| 110 | 110 | 1.5~70 |
| 120 | 120 | 1.5~70 |
| 150 | 150 | 1.5~70 |
| 200 | 200 | 1.5~70 |
| 250 | 250 | 1.5~70 |
| 300 | 300 | 1.5~70 |
