Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO 14001:2015
Model Number: negotiate
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20tons per month
Type: |
Custom-molded Sizes Accepted |
Material: |
100% Virgin Raw Material |
Certificate: |
ISO 14001:2015 |
Product Name: |
Tungsten Carbide Plate |
Dimensions: |
Customer's Request |
Hardness: |
86.5- 90.5 HRA |
TRS: |
2800-4000 N/mm3 |
Shape: |
Rectangular Solid, Cube, Sheet |
Type: |
Custom-molded Sizes Accepted |
Material: |
100% Virgin Raw Material |
Certificate: |
ISO 14001:2015 |
Product Name: |
Tungsten Carbide Plate |
Dimensions: |
Customer's Request |
Hardness: |
86.5- 90.5 HRA |
TRS: |
2800-4000 N/mm3 |
Shape: |
Rectangular Solid, Cube, Sheet |

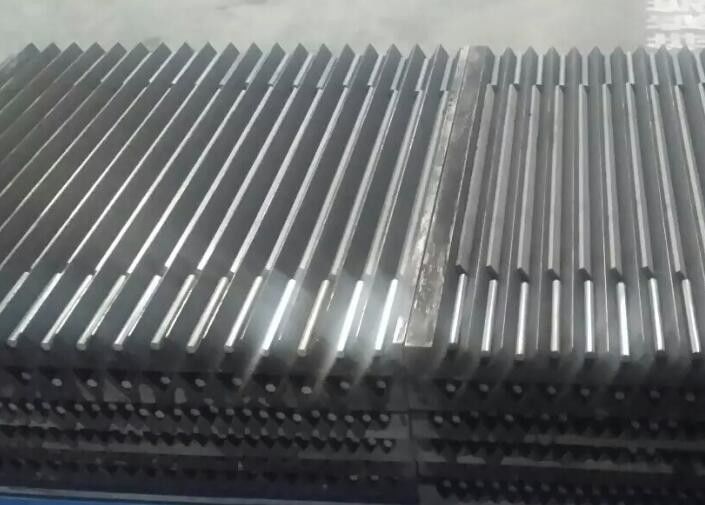

100% Virgin Raw Material Tungsten Carbide Wear Plates SGS / ISO Certified
Tungsten Carbide Plates Features
1. 100% virgin tungsten carbide materials.
2. Sintering and ground surface.
3. Composition: WC+Co, WC+TiC+TaC+Co.
4. ISO 14001:2015
5. OEM and ODM are accepted as well.
Application:
1. Suitable for the production of cast iron rolls and high chrome roll knife.
2. Applicable to the production of discharge plate, stamping die, cold punching die, such as electronic stamping die.
3. Used for stamping dies. Used in the production of copper, aluminum, stainless steel, cold rolled sheet, EI board, Q195, SPCC, silicon steel plate, metal, standard parts, upper and lower punch and other high-speed mold.
4. Tungsten carbide plate wear resistance is higher, suitable for hardwood, logs, aluminum, copper rods, cast iron processing for the production of various types of motors, electronic into the mold, stamping electronic mold.
5. Different uses of carbide materials, material performance is inconsistent, the use of specific purposes should be based on appropriate materials to select carbide plate.
Recommended Grade:
| Grade | Binding phase(%) | Grain Size(um) | Density(g/cm3) | Hardness(HRA) | TRS(Mpa) |
| VKD10 | 6.0 | 1.2 | 14.7 | 89 | 2400 |
| VKD20 | 15.0 | 1.2 | 13.9 | 86.5 | 3000 |
| VKD30 | 20.0 | 1.0 | 13.5 | 86.2 | 3100 |
| VKD40 | 15.0 | 0.8 | 13.95 | 89.5 | 3600 |
| VKD50 | 7.6 | 1.2 | 14.10 | 90.2 | 3000 |
| VKD05 | 6.0 | 2.4 | 14.80 | 90.0 | 3000 |
| VKD12 | 13.0 | 1.4 | 14.15 | 89.0 | 3500 |
| VKD15 | 15.0 | 1.2 | 13.85 | 88.2 | 3800 |
