Product Details
Place of Origin: Zhuzhou
Brand Name: VKD
Certification: ISO14001:2015
Model Number: Tungsten Carbide Rod
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, PayPal, MoneyGram
Supply Ability: 10tons/month
Features: |
High Hardness,Good Wear Resistance,High Bending Strengthhigh Hardness And Wear / Corrosion Resistance |
Type: |
Tungsten Carbide Rod |
Grade: |
YG15,YG20,YG25 |
Application: |
Punches, Punching, Carbide Dies |
Shape: |
Round Rod |
Dimensions: |
Customized |
OEM: |
Yes |
Material: |
Co+WC |
Features: |
High Hardness,Good Wear Resistance,High Bending Strengthhigh Hardness And Wear / Corrosion Resistance |
Type: |
Tungsten Carbide Rod |
Grade: |
YG15,YG20,YG25 |
Application: |
Punches, Punching, Carbide Dies |
Shape: |
Round Rod |
Dimensions: |
Customized |
OEM: |
Yes |
Material: |
Co+WC |

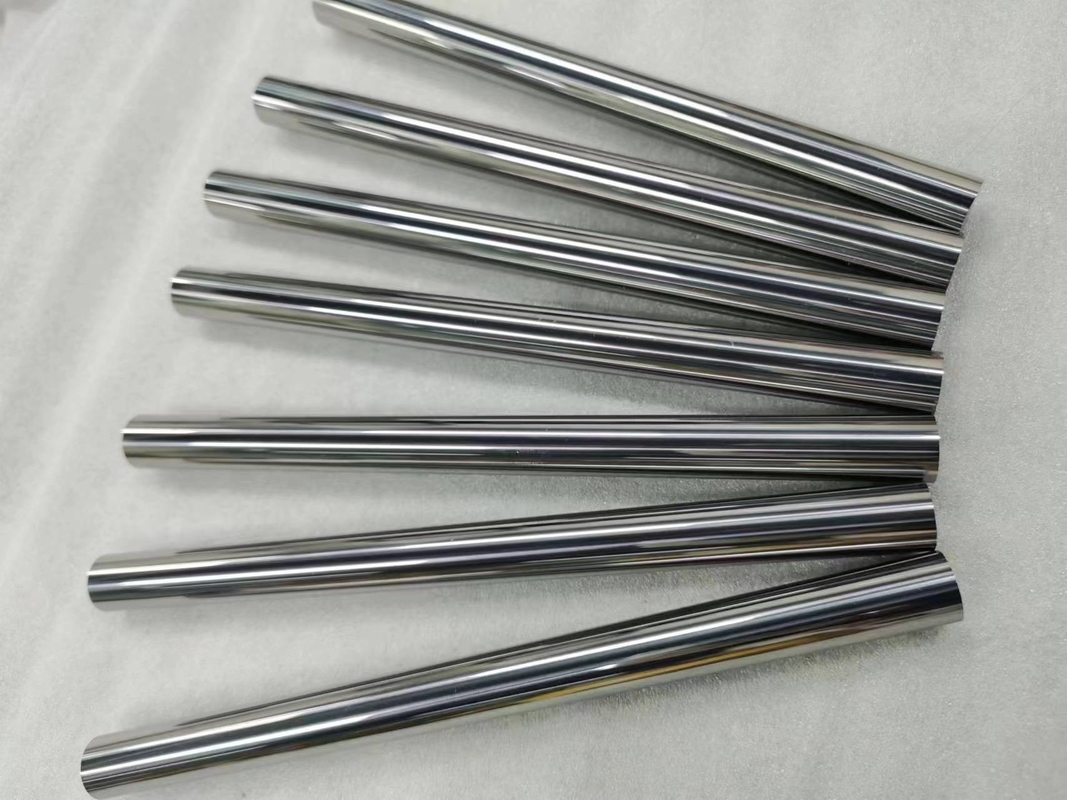

Polished h6 carbide rods for punches cemented Cobalt 25% carbide rods
Characteristics of Material Properties
1. Using high-quality ultrafine tungsten carbide and imported cobalt powder as raw materials.
2. Standardized production using world advanced low-pressure sintering technology.
3. High strength and hardness.
4. It has excellent red hardness, good wear resistance, high modulus of elasticity, high flexural strength, good chemical stability (acid, alkali, high temperature oxidation), good impact toughness, low expansion coefficient, similar thermal conductivity and conductivity to iron and its alloys.
5. Advanced high-tech precision equipment: Germany imported 10MPa low-pressure sintering furnace sintering.
6. Unique new technology: vacuum high temperature and high pressure sintering. Pressure sintering is used in the final stage of the product, which greatly reduces the porosity, improves the compactness and greatly improves the mechanical properties of the product.
7. Product characteristics: special material brand, special formula; complete specifications, precise blank size (less processing capacity, improve production efficiency)
| Grade | Density | T.R.S | Hardness | Properties & Applications |
| g/cm3 | N/mm2 | HRA | ||
|
VKD800
|
14.46
|
4500
|
94.6 |
Nano grain size, suitable for making tools for hardened steels with a hardness of HRC 55 or more.
|
|
VKD1200
|
14.1 | 4000 | 92.5 |
Ultra-fine grain size,suitable for high speed cutting of mould steels (especially suitable for heat treated steels ≤ HRC 50), high temperature alloys, stainless
steels, glass fibre reinforced plastics and other composite materials. Particularly
recommended for making high-gloss cutters.
|
|
VKD600
|
14.9 | 3800 | 93.1 |
Ultra-fine grain size, suitable for machining aluminium and magnesium alloys,
plastics, King Plastics and composite materials such as carbon fibre. Recommended for the drilling and milling of aluminium and magnesium alloys.
|
|
VKD1000
|
14.37 | 4000 | 91.5 |
Ultra-fine grain size,suitable for drilling, milling and reaming of stainless steel,
plain steel, cast iron, titanium alloys, etc. Especially recommended for 316 series stainless steel.
|
|
VKD1000A
|
14.45 | 3800 | 91.7 |
Ultra-fine grain size,suitable for the processing of plain steel, cast iron, 304 series stainless steel and other materials. Recommended for drills, end mill cutters, screw tap, etc.
|
|
VKD1200A
|
14.15 | 4000 | 92 |
Ultra-fine grain size, suitable for machining plain steel up to HRC 4O degrees, cast iron mould steel, etc. Recommended for making milling cutters.
|
|
VKD800A
|
14.65 | 4200 | 92.8 |
Sub-fine grain size,suitable for machining cast iron, aluminium alloys, plain steel,etc. Recommended for the drilling of cast iron and aluminium alloys. |
|
VKD1000B
|
14.42 | 4000 | 91.5 |
Sub-fine grain size,suitable for the machining of plain steel, cast iron, non-ferrous metals and other materials with a high degree of versatility. Recommended for twist drills, end mill cutters,screw tap, etc.
|
|
VKD1000C
|
14.46 | 4000 | 91.6 |
Sub-fine grain size,suitable for the machining of plain steel, cast iron, non-ferrous all-metal and other materials. Recommended for internal cold hole tools such as single straight, double straight and spiral holes.
|
|
VKD1000D
|
14.4 | 3800 | 91 |
Fine grain size,suitable for the machining of plain steel, cast iron and other
materials, recommended for making end mill cutters.
|
|
Please contact us get more grades information. customized products is acceptable.
|
Applications:
Cemented carbide bars/rods are suitable for the processing of plain steel, cast iron, stainless steel, heat-resistant steel, nickel-based and titanium alloys. It is recommended for general tool materials such as twist drills, end milling cutters, taps and gun drills.
Various dimensions are available
|
Type
|
Diameter (mm) | Tol. of Diameter (mm) | L(mm) | Tol. of Length (mm) |
| Φ0.7X330 | 0.7 | +0.40/+0.15 | 330/310 | -0~+5.0 |
| Φ0.9X330 | 0.9 | +0.40/+0.15 | 330/310 | -0~+5.0 |
| Φ1.2X330 | 1.2 | +0.40/+0.20 | 330/310 | -0~+5.0 |
| Φ1.6X330 | 1.6 | +0.40/+0.20 | 330/310 | -0~+5.0 |
| Φ2.3X330 | 2.3 | +0.40/+0.20 | 330/310 | -0~+5.0 |
| Φ2.8X330 | 2.8 | +0.40/+0.20 | 330/310 | -0~+5.0 |
| Φ3.0X330 | 3.0 | +0.50/+0.20 | 330/310 | -0~+5.0 |
| Φ3.5X330 | 3.5 | +0.50/+0.20 | 330/310 | -0~+5.0 |
| Φ4.0X330 | 4.0 | +0.50/+0.20 | 330/310 | -0~+5.0 |
| Φ4.5X330 | 4.5 | +0.50/+0.20 | 330/310 | -0~+5.0 |
| Φ6.5X330 | 6.5 | +0.50/+0.20 | 330/310 | -0~+5.0 |
| Φ7.5X330 | 7.5 | +0.60/+0.20 | 330/310 | -0~+5.0 |
| Φ8.5X330 | 8.5 | +0.60/+0.20 | 330/310 | -0~+5.0 |
| Φ12.0X330 | 12.0 | +0.60/+0.20 | 330/310 | -0~+5.0 |
| Φ15.0X330 | 15.0 | +0.70/+0.30 | 330/310 | -0~+5.0 |
| Φ19.0X330 | 19.0 | +0.80/+0.30 | 330/310 | -0~+5.0 |
| Φ21.0X330 | 21.0 | +0.80/+0.30 | 330/310 | -0~+5.0 |
| Φ23.0X330 | 23.0 | +0.80/+0.30 | 330/310 | -0~+5.0 |
| Φ26.0X330 | 26.0 | +0.80/+0.30 | 330/310 | -0~+5.0 |
| Φ30.0X330 | 30.0 | +0.80/+0.30 | 330/310 | -0~+5.0 |
| Φ34.0X330 | 34.0 | +1.20/+0.60 | 330/310 | -0~+5.0 |
| Φ36.0X330 | 36.0 | +1.20/+0.60 | 330/310 | -0~+5.0 |
| Φ39.0X330 | 39.0 | +1.20/+0.60 | 330/310 | -0~+5.0 |
| Φ42.0X330 | 42.0 | +1.20/+0.60 | 330/310 | -0~+5.0 |
| Φ46.0X330 | 46.0 | +1.20/+0.60 | 330/310 | -0~+5.0 |
| Φ50.0X330 | 50.0 | +1.20/+0.60 | 330/310 | -0~+5.0 |
|
Please contact us get more dimensions info. customized products is acceptable.
|
||||
About our company
Zhuzhou Weikeduo Cemented Carbide Co., LTD. established in 2014, which is located in the cemented carbide hometown of China-- Zhuzhou city, Hunan province. our company is a modern enterprise that integrated to research, development, production, marketing and technology service support of cemented carbide products.
Our main products: carbide rods, strips,plates, carbide buttons,carbide inserts and carbide shim seat. we supply standard products and have rich experience in making customized products according to client’s drawings or sample.
We are equipped with a strong R & D team, advanced machines, standard workshops and high efficiency production controlling system. Based on ISO9001, we have strict quality management system in every point on work flow to ensure that we can offer you high-quality products and perfect services. our cemented carbide products are enjoyed great popularity in domestic and abroad markets, Asia,South America, Middle East and European countries.
Our Service
We provide professional technical guidance before palcing order and after receiving goods.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are tungsten carbide factory with more than 9 years production experience, which is located in the cemented carbide hometown of China-- Zhuzhou city, Hunan province.
Q2: How long is your delivery time?
A: Generally it is 3-5 days if the tungsten carbide blank is in stock. or it is 15-30 days if the tungsten carbide blank is not in stock, it depends on order quantity.
Q3: How to ensure the quality of products ?
A: All prodcuts will be inspected by 3 times before shipment.Raw material inspection,semi-inspection, final inspection.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide free samples for testing, freight is paid by the client.
