Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001:2008
Model Number: SS10
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Product Name: |
Tungsten Carbide Lathe Tips |
Grade: |
YG8、YG9C、YG11C、YG15 |
Usage: |
Limestone , Tuff , Granite |
Material: |
Tungsten Carbide |
Feature: |
Anti Corrosion |
Type: |
Power Tool Parts |
Brand Name: |
VKD |
Package: |
Plastic Box+Carton Boxes |
Product Name: |
Tungsten Carbide Lathe Tips |
Grade: |
YG8、YG9C、YG11C、YG15 |
Usage: |
Limestone , Tuff , Granite |
Material: |
Tungsten Carbide |
Feature: |
Anti Corrosion |
Type: |
Power Tool Parts |
Brand Name: |
VKD |
Package: |
Plastic Box+Carton Boxes |

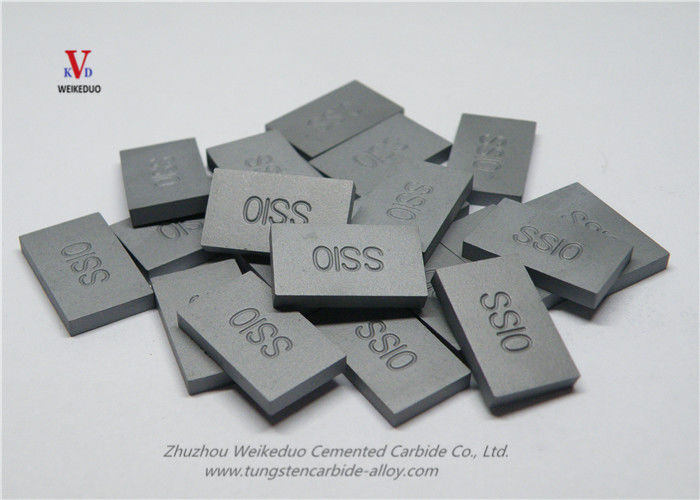

Anti Corrosion Tungsten Carbide Lathe Tips / OEM Indexable Carbide Inserts
Tungsten Carbide Lathe Tips Introduction
1) Made of selective raw material, have more stable properties and longer life time;
2) Special grades for different stones and countries, can provide optimum solutions for customers;
3) Improved process, ensuring higher strength, therefore decreases possibility of crack;
4) Pressed with precision molds, therefore have better dimensional accuracy;
5) Performed careful surface treatment, the products have better appearance;
6) Full range of sizes available, saving cost and delivery time;
7) Top manufacturer in China with over 10 years’ experience.
SS10 Tungsten Carbide Lathe Tips Mains Grade
| Grade No. |
Density (g/cm³) |
Hardness (HRA) |
T·R·S (MPa) | Application Recommended |
| YG6 | 15.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees |
Tungsten Carbide Lathe Tips Size
| 12*12*4.0~5.0mm | 15*10*5mm | 20*12*3.0mm |
| 13*7*5mm | 16*12*3.2mm | 20*12*3.2mm |
| 14.6*9.8*5mm | 18*12*3.35mm | 20*12*3.35mm |
| 14*10*4.7mm | 19.6*11.9*2.9mm | 20*12*3.4mm |
| 20*12*3.5mm |
Tungsten Carbide Lathe Tips Application
Cutting of various stones in quarries,Cutting of limestone, tuff, granite, marble, etc.
Tungsten Carbide Lathe Tips Details
Q1 : Are you Factory or trading company ?
We are Factory with many years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou , is a enterprise integrating R&D, production and marketing of cemented carbide series products.
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products of high quality Good performance brazed tips by stellite alloy?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q5: How to place an order for Good performance brased tips by stellite alloy?
1. Fill your Order List in our online Inquiry System
(Also you can directly contact our salesperson by E-mail / Skype / Whats App)
2. We will make a feedback to you ASAP after receive your order list.
Q6: How we can trust your company ?
100% products quality protection, 100% on -time shipment protection, 100% payment protection for your covered amount.
