Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: DCM11T304-FA
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Name: |
Indexable Carbide Inserts |
Feature: |
Abrasion Resistance |
Material: |
Tungsten Carbide |
OEM: |
Yes |
Hardness: |
HRC40-60, More Than HV2000 |
Coating: |
TiAlN |
Machining Method: |
Finish, Semi-finish, Rough |
Grade: |
P10-30,K10-30 |
Condition: |
New |
Name: |
Indexable Carbide Inserts |
Feature: |
Abrasion Resistance |
Material: |
Tungsten Carbide |
OEM: |
Yes |
Hardness: |
HRC40-60, More Than HV2000 |
Coating: |
TiAlN |
Machining Method: |
Finish, Semi-finish, Rough |
Grade: |
P10-30,K10-30 |
Condition: |
New |

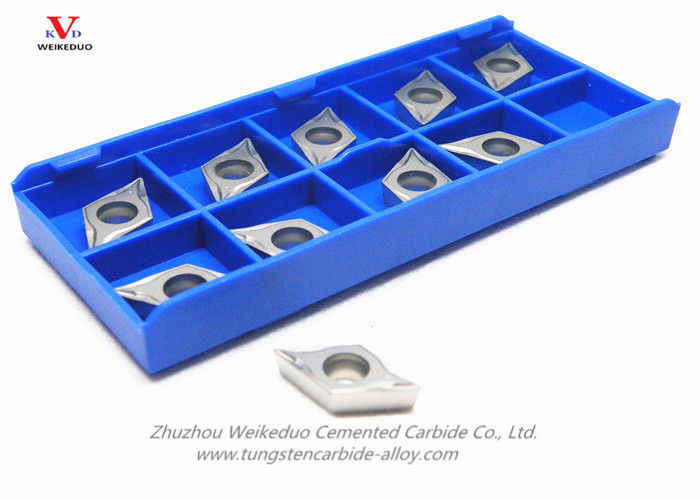

OEM Indexable Carbide Inserts , Carbide Lathe Inserts Abrasion Resistance
Indexable Carbide Inserts Classification
(1) Turning tools can be divided according to their use.
(a) 90 degree turning tool (partial knife);
(b) 45 degree turning tool (elbow turning tool);
(c) Cutting knife;
(d) Boring cutters;
(e) Formed turning tools;
(f) Thread turning tools;
(g) Carbide non-grinding turning tools
(2) Basic uses of various turning tools
(a) 90 degree turning tool: used for turning the workpiece's outer circle, step and end face.
(b) 45 degree turning tool: used for turning the workpiece's outer circle, end face and chamfer.
(c) Cutting knife: used to cut the grooves cut out on the workpiece or workpiece.
(d) Boring cutter: used for turning the inner hole of the workpiece.
(e) Forming turning tools: used for turning fillets, grooves or workpieces with special shapes at the step.
(f) Thread turning tool: used for turning threads.
Indexable Carbide Inserts Parameters
| No. | Grade | Grade description | Grade(Competitors) |
| 1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
| 2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
| 3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
| 4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. | UC5115(MITSUBISHI) |
| 5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. | UC5115(MITSUBISHI) |
| 6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker. | UC5115(MITSUBISHI) |
| 7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
| 8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field. | |
| 11 | YBG205 | PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field. | VP15TF(MITSUBISHI) |
| 12 | YB9320 | PVD multilayer coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (grooving/milling).Optimized coating stability for higher wear resistance and thermal stability in a wide application field. | |
| 13 | YNT251 | Uncoated P10–P25 cermet grade for fine finishing to medium operation of steel and stainless steel. Good wear resistance and toughness. Suitable also in light interrupted cut. | |
| ... | ... | DON'T HESITATE TO CONTACT US TO GET MORE DETAILS! | ... |
YG3X 14.6-15.2 1320 92 is suitable for high speed finishing of small cutting sections of cast iron, non-ferrous metal and alloy quenched steel alloy steel.
YG6A 14.6-15.0 1370 91.5 is suitable for semi-finishing of hard cast iron, non-ferrous metals and their alloys, as well as semi-finishing and finishing of high manganese steel, quenched steel and alloy steel.
The production and application of
YG6X 14.6-15.0 1420 91 show that the alloy has good effect in processing cold-hard alloy cast iron and heat-resistant alloy steel, and is also suitable for surface treatment of ordinary cast iron.
YG6 14.5-14.9 1380 89 is suitable for medium cutting speed semi-finishing of cast iron, non-ferrous metal and alloy non-metallic materials.
YG6X-1 14.6-15.0 1500 90 is suitable for continuous cutting, semi-precision turning, small section precision turning, rough turning thread, continuous section semi-precision milling, hole roughing and precision milling of cast iron, non-ferrous metal and its alloy non-metallic materials.
YG8N 14.5-14.8 2000 90 is suitable for high speed cutting of cast iron, white cast iron, nodular cast iron, chromium, nickel stainless steel and other alloy materials.
YG8 14.5-14.9 1600 89.5 is suitable for rough turning, roughing, grinding, drilling and reaming of general and deep holes in the processing of cast iron, non-ferrous metals, their alloys and non-metallic materials.
YS2T 14.4-14.6 2200 91.5 belongs to superfine grain alloy. It is suitable for milling low-speed rough turning, heat-resistant alloy and titanium alloy. It is used as cutting tool, tap and saw blade milling cutter.
YT15 11.0-11.7 1150 91 is suitable for rough turning, semi-finishing turning and finishing turning in continuous cutting, small cross-section finishing turning in intermittent cutting, semi-finishing turning and finishing turning on continuous surface, rough and precise expanding of holes in processing of carbon steel and alloy steel.
YT5 12.5-13.2 1430 89.5 is suitable for rough turning, rough shaving, semi-fine shaving, rough grinding and drilling of discontinuous surfaces of carbon and alloy steels (including steel forgings, stamping parts and casting surfaces).
YS25 12.8-13.2 2000 91 is suitable for rough turning, milling and planing of carbon steel, cast steel, high manganese steel, high strength steel and alloy steel.
YT14 11.2-12.0 1270 90.5 is suitable for rough turning, rough turning and continuous cutting in the processing of carbon steel and alloy steel, semi-finish turning and precision turning in intermittent cutting, continuous rough turning, drilling and rough expansion of casting holes.
