Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: LPET110440L-KR
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Name: |
Tungsten Carbide Inserts |
Brand Name: |
VKD |
Type: |
Indexable |
Usage: |
Inside Lathe Tool |
Hardness: |
HRC40-60 |
Coating: |
TiAlN |
Feature: |
High Hardness |
Color: |
Grey,gold |
Grade: |
P10-30,K10-30 |
Certification: |
ISO9001 ISO14001 |
Name: |
Tungsten Carbide Inserts |
Brand Name: |
VKD |
Type: |
Indexable |
Usage: |
Inside Lathe Tool |
Hardness: |
HRC40-60 |
Coating: |
TiAlN |
Feature: |
High Hardness |
Color: |
Grey,gold |
Grade: |
P10-30,K10-30 |
Certification: |
ISO9001 ISO14001 |

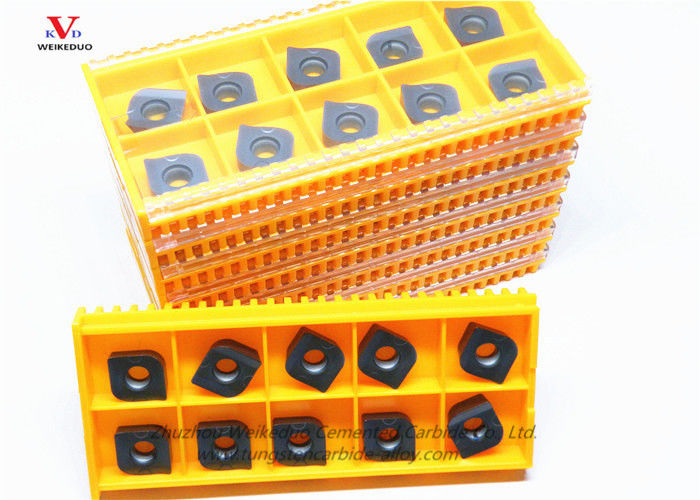

Indexable Tungsten Carbide Inserts Inside Lathe Tool High Hardness
Tungsten Carbide Inserts Feature
It is helpful to reduce the cost of cutting tools because of the long service life of the tool rod, which greatly reduces the consumption and inventory of the tool rod, simplifies the management of the tool and reduces the cost of the tool.
Forming turning tool is a special tool for processing the forming surface of revolving body. Its edge shape is designed according to the workpiece profile and can be used to process the forming surface of internal and external revolving body on various lathes. When parts are machined with formed turning tools, the surface of parts can be formed at one time. It is easy to operate and has high productivity. After processing, it can reach tolerance grade IT8~IT10, roughness is 10~5 micron, and it can ensure high interchangeability. However, the manufacture of forming turning tools is complex, the cost is high, and the working length of the blade is wide, so it is easy to cause vibration. Forming turning tools are mainly used to process large batches of medium and small size parts with formed surface.
Tungsten Carbide Inserts Parameters
| No. | Grade | Grade description | Grade(Competitors) |
| 1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
| 2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
| 3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
| 4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. | UC5115(MITSUBISHI) |
| 5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. | UC5115(MITSUBISHI) |
| 6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker. | UC5115(MITSUBISHI) |
| 7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
| 8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field. | |
YG8 14.5-14.9 1600 89.5 is suitable for rough turning, roughing, grinding, drilling and reaming of general and deep holes in the processing of cast iron, non-ferrous metals, their alloys and non-metallic materials.
YS2T 14.4-14.6 2200 91.5 belongs to superfine grain alloy. It is suitable for milling low-speed rough turning, heat-resistant alloy and titanium alloy. It is used as cutting tool, tap and saw blade milling cutter.
YT15 11.0-11.7 1150 91 is suitable for rough turning, semi-finishing turning and finishing turning in continuous cutting, small cross-section finishing turning in intermittent cutting, semi-finishing turning and finishing turning on continuous surface, rough and precise expanding of holes in processing of carbon steel and alloy steel.
YT5 12.5-13.2 1430 89.5 is suitable for rough turning, rough shaving, semi-fine shaving, rough grinding and drilling of discontinuous surfaces of carbon and alloy steels (including steel forgings, stamping parts and casting surfaces).
YS25 12.8-13.2 2000 91 is suitable for rough turning, milling and planing of carbon steel, cast steel, high manganese steel, high strength steel and alloy steel.
YT14 11.2-12.0 1270 90.5 is suitable for rough turning, rough turning and continuous cutting in the processing of carbon steel and alloy steel, semi-finish turning and precision turning in intermittent cutting, continuous rough turning, drilling and rough expansion of casting holes.
YW1 12.6-13.5 1180 91.5 is suitable for the processing of refractory steel, high manganese steel, stainless steel, common steel and cast iron.
YW2 12.4-13.5 1350 90.5 is suitable for finishing and semi-finishing of heat-resistant steel, high manganese steel, stainless steel and high alloy steel. Processing of common steel and cast iron.
YS30 12.45 1800 91.0 belongs to superfine grain alloy. It is suitable for efficient milling of various steel, especially alloy ste
| TYPE | L | ΦI.C | S | R | ||
| SPUN090304 | 9.525 | 9.525 | 3.18 | 0.4 | ||
| SPUN090308 | 9.525 | 9.525 | 3.18 | 0.8 | ||
| SPUN120304 | 12.7 | 12.7 | 3.18 | 0.4 | ||
| SPUN120308 | 12.7 | 12.7 | 3.18 | 0.8 | ||
| SPUN120312 | 12.7 | 12.7 | 3.18 | 1.2 | ||
| SPUN150408 | 15.875 | 15.875 | 4.76 | 0.8 | ||
| SPUN150412 | 15.875 | 15.875 | 4.76 | 1.2 | ||
| SPUN190408 | 19.05 | 19.05 | 4.76 | 0.8 | ||
| SPUN190412 | 19.05 | 19.05 | 4.76 | 1.2 | ||
| SPUN190416 | 19.05 | 19.05 | 4.76 | 1.6 | ||
| SPGN090304 | 9.525 | 9.525 | 3.18 | 0.4 | ||
| SPGN090308 | 9.525 | 9.525 | 3.18 | 0.8 | ||
| SPGN120308 | 12.7 | 12.7 | 3.18 | 0.8 | ||
| SPGN120404 | 12.7 | 12.7 | 4.76 | 0.4 | ||
| SPGN120408 | 12.7 | 12.7 | 4.76 | 0.8 | ||
| SPGN120412 | 12.7 | 12.7 | 4.76 | 1.2 | ||
| SPGN150404 | 15.875 | 15.875 | 4.76 | 0.4 | ||
| SPGN150408 | 15.875 | 15.875 | 4.76 | 0.8 | ||
| SPGN190408 | 19.05 | 19.05 | 4.76 | 0.8 | ||
