Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: LPET110440L-KR
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Name: |
Cemented Carbide Inserts |
Advantage: |
Wear Resistant |
Material: |
Tungsten Carbide |
Feature: |
Waterproof |
Hardness: |
HRC40-60, More Than HV2000 |
Coating: |
TiAlN |
Color: |
Grey,gold |
Other Name: |
Indexable Milling Inserts |
Grade: |
P10-30,K10-30 |
Certification: |
ISO9001 ISO14001 |
Name: |
Cemented Carbide Inserts |
Advantage: |
Wear Resistant |
Material: |
Tungsten Carbide |
Feature: |
Waterproof |
Hardness: |
HRC40-60, More Than HV2000 |
Coating: |
TiAlN |
Color: |
Grey,gold |
Other Name: |
Indexable Milling Inserts |
Grade: |
P10-30,K10-30 |
Certification: |
ISO9001 ISO14001 |

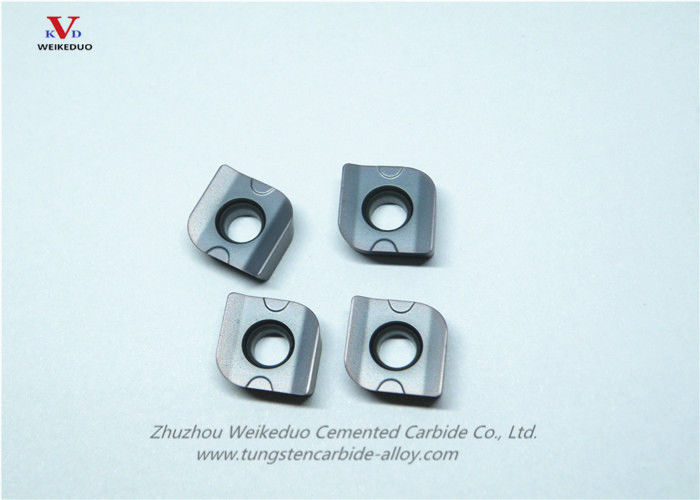

Waterproof Cemented Carbide Inserts / Indexable Milling Inserts Wear Resistant
Cemented Carbide Inserts Introduction
Carbide inserts are to be welded onto the holder, used on the lathe for the machining of various materials such as cast iron, steel, stainless steel, nonferrous metal etc.
A versatile cutter which can be used for many types of grooves, threads and chamfers; machining of eccentric components such as gearbox casings, and high volume assemblies, mainly in machining centres and rotating units in lathe
Basic uses of various turning tools
(a) 90 degree turning tool: used for turning the workpiece's outer circle, step and end face.
(b) 45 degree turning tool: used for turning the workpiece's outer circle, end face and chamfer.
(c) Cutting knife: used to cut the grooves cut out on the workpiece or workpiece.
(d) Boring cutter: used for turning the inner hole of the workpiece.
(e) Forming turning tools: used for turning fillets, grooves or workpieces with special shapes at the step.
(f) Thread turning tool: used for turning threads.
Cemented Carbide Inserts Parameters
| No. | Grade | Grade description | Grade(Competitors) |
| 1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
| 2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
| 3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
| 4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. | UC5115(MITSUBISHI) |
| 5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. | UC5115(MITSUBISHI) |
| 6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker. | UC5115(MITSUBISHI) |
| 7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
| 8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field. | |
| 11 | YBG205 | PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field. | VP15TF(MITSUBISHI) |
| 12 | YB9320 | PVD multilayer coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (grooving/milling).Optimized coating stability for higher wear resistance and thermal stability in a wide application field. | |
| 13 | YNT251 | Uncoated P10–P25 cermet grade for fine finishing to medium operation of steel and stainless steel. Good wear resistance and toughness. Suitable also in light interrupted cut. | |
| ... | ... | DON'T HESITATE TO CONTACT US TO GET MORE DETAILS! | ... |
