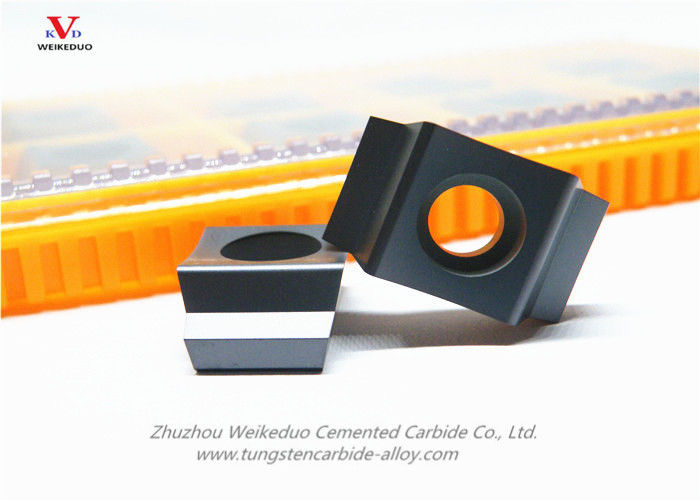

KTY19009,Rough Tungsten Carbide Tool Inserts , Grey Indexable Turning Inserts

Rough Tungsten Carbide Tool Inserts , Grey Indexable Turning Inserts

Tungsten Carbide Tool Inserts Application:

1. Suitable for steel;

2. This carbide CNC inserts used for finishing and turning;

Clamping characteristics and requirements of indexable turning tool blades:

  A. The change of tool tip position should be within the allowable range of workpiece accuracy when the positioning accuracy is high and the blade is changed or a new blade is replaced.
  B. The reliable clamping of blades should ensure that the contact surfaces of blades, tool pads and tool rods are closely fitted and can withstand impact and vibration, but the clamping force should not be too large and the stress distribution should be uniform so as to avoid crushing the blades.
  C. Smooth chip removal blade in front of the best barrier-free, to ensure the smooth chip discharge, and easy to observe.
  D. Easy to use, easy to change blades and update blades. For small size cutters, the structure should be compact. When meeting the above requirements, the structure is simple and the manufacture and use are convenient as far as possible.

(4) Forming turning tool is a special tool for processing the forming surface of revolving body. Its edge shape is designed according to the workpiece profile and can be used to process the forming surface of internal and external revolving body on various lathes. When parts are machined with formed turning tools, the surface of parts can be formed at one time. It is easy to operate and has high productivity. After processing, it can reach tolerance grade IT8~IT10, roughness is 10~5 micron, and it can ensure high interchangeability. However, the manufacture of forming turning tools is complex, the cost is high, and the working length of the blade is wide, so it is easy to cause vibration. Forming turning tools are mainly used to process large batches of medium and small size parts with formed surface.

Chip breaker System
