Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: KTY19009
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Product Name: |
Square Carbide Inserts |
Brand Name: |
VKD |
Usage: |
Formed Turning Tools / Cutting Knife |
Hardness: |
HRC40-60, More Than HV2000 |
Name: |
Cnc Turning Inserts |
Machining Method: |
Finish, Semi-finish, Rough |
Grade: |
P10-30,K10-30 |
Certification: |
ISO9001 ISO14001 |
Product Name: |
Square Carbide Inserts |
Brand Name: |
VKD |
Usage: |
Formed Turning Tools / Cutting Knife |
Hardness: |
HRC40-60, More Than HV2000 |
Name: |
Cnc Turning Inserts |
Machining Method: |
Finish, Semi-finish, Rough |
Grade: |
P10-30,K10-30 |
Certification: |
ISO9001 ISO14001 |

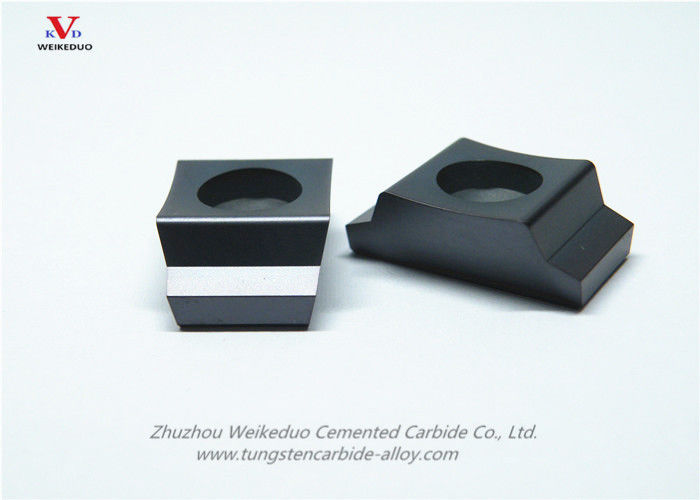

HRC40-60 Hardness Square Carbide Inserts , Cnc Turning Inserts With Holes
Square Carbide Inserts Introduction:
1. Dimension accurate, durable and reliable performance.
2. High quality with competitive price.
3. Widely used in industry of metalworking machinery.
4. Long service life and high wear resistance.
5. Excellent edge strength.
Classification by use
(1) Turning tools can be divided according to their use.
(a) 90 degree turning tool (partial knife);
(b) 45 degree turning tool (elbow turning tool);
(c) Cutting knife;
(d) Boring cutters;
(e) Formed turning tools;
(f) Thread turning tools;
(g) Carbide non-grinding turning tools
Square Carbide Inserts Parameters
| No. | Grade | Grade description | Grade(Competitors) |
| 1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
| 2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
| 3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
| 4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. | UC5115(MITSUBISHI) |
| 5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. | UC5115(MITSUBISHI) |
| 6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker. | UC5115(MITSUBISHI) |
| 7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
| 8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed. |
YG3X 14.6-15.2 1320 92 is suitable for high speed finishing of small cutting sections of cast iron, non-ferrous metal and alloy quenched steel alloy steel.
YG6A 14.6-15.0 1370 91.5 is suitable for semi-finishing of hard cast iron, non-ferrous metals and their alloys, as well as semi-finishing and finishing of high manganese steel, quenched steel and alloy steel.
The production and application of
YG6X 14.6-15.0 1420 91 show that the alloy has good effect in processing cold-hard alloy cast iron and heat-resistant alloy steel, and is also suitable for surface treatment of ordinary cast iron.
YG6 14.5-14.9 1380 89 is suitable for medium cutting speed semi-finishing of cast iron, non-ferrous metal and alloy non-metallic materials.
YG6X-1 14.6-15.0 1500 90 is suitable for continuous cutting, semi-precision turning, small section precision turning, rough turning thread, continuous section semi-precision milling, hole roughing and precision milling of cast iron, non-ferrous metal and its alloy non-metallic materials.
YG8N 14.5-14.8 2000 90 is suitable for high speed cutting of cast iron, white cast iron, nodular cast iron, chromium, nickel stainless steel and other alloy materials.
YG8 14.5-14.9 1600 89.5 is suitable for rough turning, roughing, grinding, drilling and reaming of general and deep holes in the processing of cast iron, non-ferrous metals, their alloys and non-metallic materials.
YS2T 14.4-14.6 2200 91.5 belongs to superfine grain alloy. It is suitable for milling low-speed rough turning, heat-resistant alloy and titanium alloy. It is used as cutting tool, tap and saw blade milling cutter.
YS25 12.8-13.2 2000 91 is suitable for rough turning, milling and planing of carbon steel, cast steel, high manganese steel, high strength steel and alloy steel.
YT14 11.2-12.0 1270 90.5 is suitable for rough turning, rough turning and continuous cutting in the processing of carbon steel and alloy steel, semi-finish turning and precision turning in intermittent cutting, continuous rough turning, drilling and rough expansion of casting holes.
| TYPE | L | ΦI.C | S | bs |
| SEKN1203AFFN | 12.7 | 12.7 | 3.18 | 1.8 |
| SEKN1203AFN | 12.7 | 12.7 | 3.18 | 1.8 |
| SEKN1203AFTN | 12.7 | 12.7 | 3.18 | 1.8 |
| SEKN1504AFN | 15.875 | 15.875 | 4.76 | 1.6 |
| SEKN1504AFTN | 15.875 | 15.875 | 4.76 | 1.6 |
| TYPE | L | ΦI.C | S | bs |
| SEEN1203AFTN | 12.7 | 12.7 | 3.18 | 1.8 |
