Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: SNMG120408R
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Name: |
Tungsten Carbide Inserts |
Material: |
Tungsten Carbide |
Sintering: |
Gradient Sintering |
Coating: |
CVD |
Product Name: |
Turning Cutter Blade |
Color: |
Grey,gold |
Machining Method: |
Semi-finish |
Grade: |
P10-30,K10-30 |
Name: |
Tungsten Carbide Inserts |
Material: |
Tungsten Carbide |
Sintering: |
Gradient Sintering |
Coating: |
CVD |
Product Name: |
Turning Cutter Blade |
Color: |
Grey,gold |
Machining Method: |
Semi-finish |
Grade: |
P10-30,K10-30 |

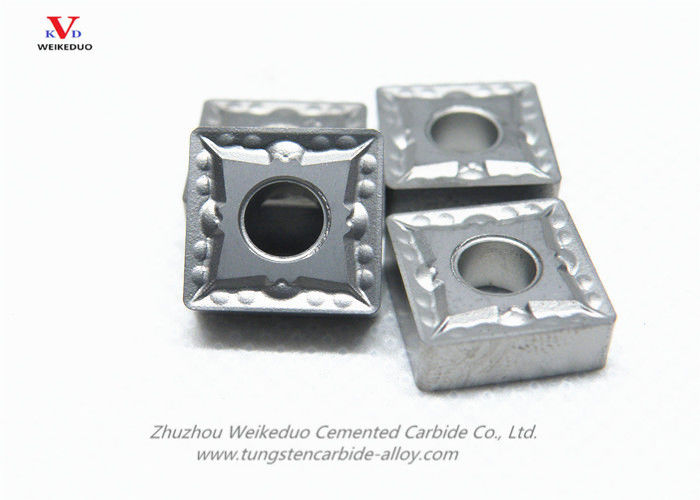

Gradient Sintering Tungsten Carbide Inserts Lathe Tools Impact Resistance
Tungsten Carbide Inserts coating
1. Golden surface of TiN can reduce friction and enable easy distinctionof the variety of wear.
2.Special structure of Al2O3 deposit layer acts as a thermal barrier and strengthens the capability of substrate
against plastic deformation under dry and high-speed cutting conditions.
3. TiCN layer acts against abrasion, which leads to the best wear resistance of the flank.
4.Thanks to the technology of gradient sintering, impact resistance of cutting edge and wear resistance are
improved which lead to improved capability of cutting edge against damage.
5.Carbide with special crystal structure improves the Red Hardness of substrate and strengthens heat resistance of
insert.
Tungsten Carbide Inserts Parameters
| No. | Grade | Grade description | Grade(Competitors) |
| 1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
| 2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
| 3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
| 4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. | UC5115(MITSUBISHI) |
| 5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. | UC5115(MITSUBISHI) |
| 6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker. | UC5115(MITSUBISHI) |
| 7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
| 8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field. | |
| 11 | YBG205 | PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field. | VP15TF(MITSUBISHI) |
YG3X 14.6-15.2 1320 92 is suitable for high speed finishing of small cutting sections of cast iron, non-ferrous metal and alloy quenched steel alloy steel.
YG6A 14.6-15.0 1370 91.5 is suitable for semi-finishing of hard cast iron, non-ferrous metals and their alloys, as well as semi-finishing and finishing of high manganese steel, quenched steel and alloy steel.
The production and application of
YG6X 14.6-15.0 1420 91 show that the alloy has good effect in processing cold-hard alloy cast iron and heat-resistant alloy steel, and is also suitable for surface treatment of ordinary cast iron.
YG6 14.5-14.9 1380 89 is suitable for medium cutting speed semi-finishing of cast iron, non-ferrous metal and alloy non-metallic materials.
YG6X-1 14.6-15.0 1500 90 is suitable for continuous cutting, semi-precision turning, small section precision turning, rough turning thread, continuous section semi-precision milling, hole roughing and precision milling of cast iron, non-ferrous metal and its alloy non-metallic materials.
YT15 11.0-11.7 1150 91 is suitable for rough turning, semi-finishing turning and finishing turning in continuous cutting, small cross-section finishing turning in intermittent cutting, semi-finishing turning and finishing turning on continuous surface, rough and precise expanding of holes in processing of carbon steel and alloy steel.
YT5 12.5-13.2 1430 89.5 is suitable for rough turning, rough shaving, semi-fine shaving, rough grinding and drilling of discontinuous surfaces of carbon and alloy steels (including steel forgings, stamping parts and casting surfaces).
YS25 12.8-13.2 2000 91 is suitable for rough turning, milling and planing of carbon steel, cast steel, high manganese steel, high strength steel and alloy steel.
YT14 11.2-12.0 1270 90.5 is suitable for rough turning, rough turning and continuous cutting in the processing of carbon steel and alloy steel, semi-finish turning and precision turning in intermittent cutting, continuous rough turning, drilling and rough expansion of casting holes.
YW1 12.6-13.5 1180 91.5 is suitable for the processing of refractory steel, high manganese steel, stainless steel, common steel and cast iron.
| TYPE | L | ΦI.C | S | Φd | R |
| MPHT060304-DM | 6.35 | 6.35 | 3.18 | 2.8 | 0.4 |
| MPHT080305-DM | 8.3 | 8.3 | 3.18 | 3.4 | 0.5 |
| MPHT120408-DM | 12.7 | 12.7 | 4.76 | 5.56 | 0.8 |
