Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: TNMG160408-HQ
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Material: |
Tungsten Carbide Powder |
Usage: |
External Turning Tool/Inside Lathe Tool |
Hardness: |
HRC40-60, More Than HV2000 |
Coating: |
TiAlN |
Product Name: |
Carbide Milling Inserts |
Color: |
Grey,gold |
Machining Method: |
Finish, Semi-finish, Rough |
Grade: |
P10-30,K10-30 |
Package: |
10pcs/plastic Box |
Certification: |
Wear Resistance |
Material: |
Tungsten Carbide Powder |
Usage: |
External Turning Tool/Inside Lathe Tool |
Hardness: |
HRC40-60, More Than HV2000 |
Coating: |
TiAlN |
Product Name: |
Carbide Milling Inserts |
Color: |
Grey,gold |
Machining Method: |
Finish, Semi-finish, Rough |
Grade: |
P10-30,K10-30 |
Package: |
10pcs/plastic Box |
Certification: |
Wear Resistance |

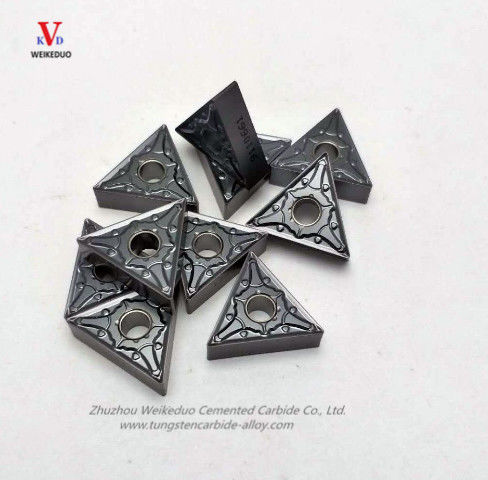

Wear Resistance Carbide Milling Inserts / Triangle Cemented Carbide Inserts
Carbide Inserts :
1. Made in 100% virgin carbide powder, excellent wear resistance and toughness;
2. High performance CVD/PVD coating, with super hard and smooth surface;
3. Performed 200% inspection, under ISO9001:2008 quality system control;
4. Professional chip-breaker design, provides perfect cutting performance;
5. Precise dimension, high accuracy;
6. Super long and consistent tool life;
7. Customized insert design, coating, marking, packing are available.
Classification by use
(1) Turning tools can be divided according to their use.
(a) 90 degree turning tool (partial knife);
(b) 45 degree turning tool (elbow turning tool);
(c) Cutting knife;
(d) Boring cutters;
(e) Formed turning tools;
(f) Thread turning tools;
(g) Carbide non-grinding turning tools
(2) Basic uses of various turning tools
(a) 90 degree turning tool: used for turning the workpiece's outer circle, step and end face.
(b) 45 degree turning tool: used for turning the workpiece's outer circle, end face and chamfer.
(c) Cutting knife: used to cut the grooves cut out on the workpiece or workpiece.
(d) Boring cutter: used for turning the inner hole of the workpiece.
(e) Forming turning tools: used for turning fillets, grooves or workpieces with special shapes at the step.
(f) Thread turning tool: used for turning threads.
Chip breaker System
|
NO
|
Chip Breaker
|
Introduction
|
Competitor
(Chip Breaker)
|
|
1
|
PM
|
Double sided chip breaker for medium machining. Wide range of application in steel and cast iron. | (PM) |
|
2
|
DF
|
Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron. | (-PF), SECO(-MF1) |
|
3
|
DM
|
Double sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability. | (PM), SECO(MF2), KYOCERA(HQ) |
|
4
|
DR
|
Double sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron. |
(PR,QR)
|
|
5
|
EF
|
Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron. | KYOCERA(-CF) |
|
6
|
EM
|
Double sided chip breaker with sharp cutting edge and large rake angle. Process reliable medium machining of stainless steel. | TUNGALOY(TM) |
|
7
|
ER
|
Double sided chip breaker with large rake angle for low cutting forces. Suitable for roughing of stainless steel. |
(MR,QR)
|
|
8
|
LH
|
Single sided chipbreaker for machining of cast aluminium alloys. Sharp cutting edge with positive rake angle. G-tolerance for high repeatability. | KORLOY(AR) |
|
9
|
LC
|
Single sided chip breaker with excellent cutting edge design. Sharp cutting edge with positive rake angle. G-tolerance for | KORLOY(AK) |
|
10
|
HF
|
Single sided chip breaker with good chip control. Suitable for finishing to medium machining of steel and cast iron. | MITSUBISHI
(FJ,FV), KYOCERA(CF)
|
|
11
|
HM
|
Single sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability. | MITSUBISHI
(FJ,FV), KYOCERA(CF)
|
|
12
|
HR
|
Single sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron. |
(MR,QR,PR)
|
|
13
|
TC
|
Double sided chip breaker with surrounding cutting edge. Process reliable machining due to highest cutting edge stability. | MITSUBISHI
(GH)
|
| ... | ... | DON'T HESITATE TO CONTACT US TO GET MORE DETAILS! | ... |
| No. | Grade | Grade description | Grade(Competitors) |
| 1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
| 2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
| 3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
| 4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. | UC5115(MITSUBISHI) |
| 5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. | UC5115(MITSUBISHI) |
| 6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker. | UC5115(MITSUBISHI) |
| 7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
| 8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field. | |
| 11 | YBG205 | PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field. | VP15TF(MITSUBISHI) |
| 12 | YB9320 | PVD multilayer coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (grooving/milling).Optimized coating stability for higher wear resistance and thermal stability in a wide application field. | |
| 13 | YNT251 | Uncoated P10–P25 cermet grade for fine finishing to medium operation of steel and stainless steel. Good wear resistance and toughness. Suitable also in light interrupted cut. | |
| ... | ... | DON'T HESITATE TO CONTACT US TO GET MORE DETAILS! | ... |
Full Specification
| CCMT | SCMW | SECN | TEEN | VNMA | ODEW | DHD |
| CCMW | SCGW | SEGN | TECN | VBMW | XEEN | MP |
| CNMA | SNMA | SNGA | TEEW | VCMW | EDR | G25 |
| CCGW | SNGN | TPGH | TECW | VNMG | SDR | ADEW |
| CNMN | SNMN | TCGW | RNMN | VNMP | DED | TEEW |
| CPMN | SPMN | TPGN | RNGN | VPGA | DGD | SDEN |
| DCGW | SPGN | TNMA | REEN | VPGR | DFD | SEEN |
| DNMA | SPCN | TEHW | RCMN | WNMA | ... .. |
|
R/L groove description: Precision boring insert recommended groove G-level accuracy, sharp edge, small tool tip arc, effective prevention of vibration in processing, suitable for precision boring, but also for precision cylindrical processing.
| TYPE | S | Φd | r | |||
| TPGH090202L | 2.38 | 2.8 | 0.2 | |||
| TPGH090204L | 2.38 | 2.8 | 0.4 | |||
| TPGH110302L | 3.18 | 3.18 | 0.2 | |||
| TPGH110304L | 3.18 | 3.18 | 0.4 | |||
R/L groove description: Precision boring insert recommended groove G-level accuracy, sharp edge, small tool tip arc, effective prevention of vibration in processing, suitable for precision boring, but also for precision cylindrical processing.
| TYPE | S | Φd | r | |||
| TBGH060102L | 1.59 | 2.2 | 0.2 | |||
| TBGH060104L | 1.59 | 2.2 | 0.4 | |||
