Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Model Number: Tungsten Carbide Rod
Payment & Shipping Terms
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plastic boxes, cartons
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: One million films a month
Name: |
Tungsten Carbide Rod |
Brand Name: |
VKD |
Model Number: |
Carbide Water Jet Nozzle |
Rockwell Hardness: |
96HRA |
Type: |
Power Tool Parts, Inch And Metric |
Material: |
100% Virgin Tungsten Carbide |
Surface Treatment: |
As Sintering Or Polishing |
Application: |
Wet Abrasive Blasting |
Function: |
Waterjet Cutting Head |
Advantage: |
Improved Production Rates And Efficiencies |
Dimension: |
As Customer Require |
Color: |
Silver |
Name: |
Tungsten Carbide Rod |
Brand Name: |
VKD |
Model Number: |
Carbide Water Jet Nozzle |
Rockwell Hardness: |
96HRA |
Type: |
Power Tool Parts, Inch And Metric |
Material: |
100% Virgin Tungsten Carbide |
Surface Treatment: |
As Sintering Or Polishing |
Application: |
Wet Abrasive Blasting |
Function: |
Waterjet Cutting Head |
Advantage: |
Improved Production Rates And Efficiencies |
Dimension: |
As Customer Require |
Color: |
Silver |

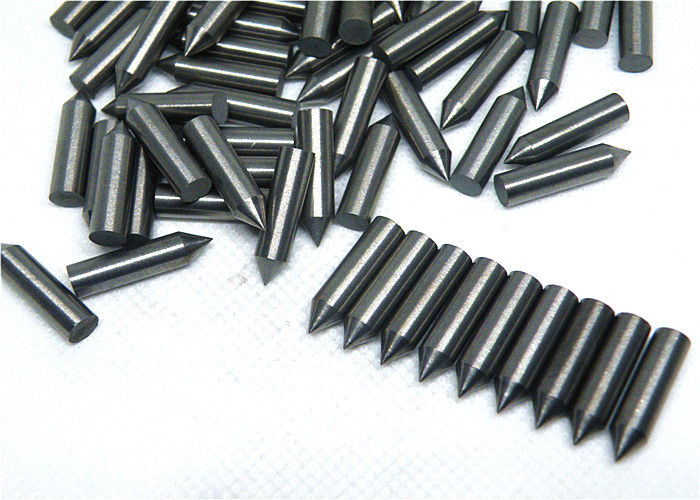

HIP Sintering Tungsten Carbide Rod High Machining Accuracy / Precision
Product Description
Tungsten carbide rods are made of WC and Cobalt. Our carbide rods are extruded forming and HIP sintered, with its high hardness and strength. Carbide rods are widely applicated in cutting tools such as carbide drills, endmills, rotary burrs, micro milling cutter, carving knives, PCB cutters and other cutting tools.
Tungsten Carbide Rod Features
1. Super hard tungsten carbide boring bar made from high toughness compound is tough and durable.
Highly materializing features of super hardness. High rigidity and extra vibration resistance, most suitable for extra depth boring (10D)
2. Standard internal coolant hole is built in every size of the bar best for cooling and chip evacuation in deep hole boring.
3. Featuring straight shank structure, the bar can be adjusted to different working lengths.
4. On both ends of main body integrated are soldering holes. One hole will be superseded by the other upon breaking. This will reduce your cost and greatly increase the value of boring bar.
5. Have combined with holes on both ends of the ontology, in case of damage at one end, on the other side can cooperate to use, increase the cutter bar itself value, more in line with economic benefit.
6. Tool rod internal thread and tungsten steel cutter bar one-time sintering, thread more stable and durable, no electrical injury is not easy to collapse.
Tungsten Carbide Rod Grade:
| Grade | Density | T.R.S | Hardness | Properties & Applications |
| g/cm3 | MPα | HRA | ||
| YL50 | 13.86 | 2060 | 1095 | It is suitable for manufacturing punching dies and tools. |
| YU06 | 14.7 | 3000 | 2050 | It is suitable for manufacturing milling cutters for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc. |
| YU08 | 14.56 | 4000 | 1900 | It is suitable for manufacturing micro-drills with diameter less than 0.8mm for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc. |
| YU09 | 14.36 | 3900 | 1950 | It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc. |
| YU12 | 14.05 | 4000 | 1750 | It is suitable for manufacturing solid cemented carbide tools for machining steels that are corrosion and heat resistant steel, stainless steel, titanium alloy, and non-ferrous metals. |
| YF06 | 14.86 | 3800 | 1800 | It is suitable for manufacturing drills with big diameters of 3.2-6.3mm for machining PCB, drills of 0.8-3.2mm and mills, and it is also suitable for making solid carbide tools for machining aluminum alloy, plastic, PTFE and compound materials, such as carbon fiber, etc. |
| YF08 | 14.55 | 3900 | 1800 | It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy, etc. |
| YG6X | 14.8 | 1800 | 1550 | It is suitable for manufacturing solid carbide tools and wear parts. |
| YG8 | 14.6 | 2400 | 1400 | It is suitable for manufacturing carbide core rods and wear parts. |
| YL10.2 | 14.5 | 4000 | 1550 | It is suitable for manufacturing various kinds of solid cemented carbide tools for machining heat-resistant alloys and Ti alloy etc. It is also suitable for manufacturing micro-drills for machining PCB. |
Welcome your inquiry.
