Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001:2015
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10tons per month
Name: |
CNC Carbide Inserts |
Material: |
Tungsten Carbide |
Advantage: |
Wear Resistance |
Hardness: |
Different |
Usage: |
External Turning Tool |
Coating: |
PVD CVD |
Name: |
CNC Carbide Inserts |
Material: |
Tungsten Carbide |
Advantage: |
Wear Resistance |
Hardness: |
Different |
Usage: |
External Turning Tool |
Coating: |
PVD CVD |

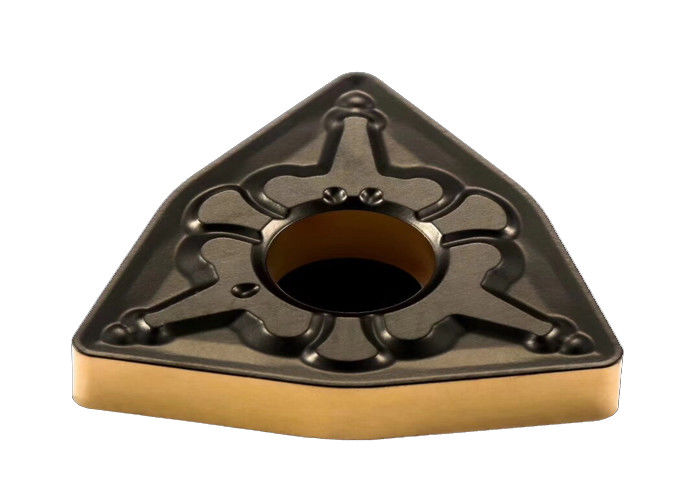

PVD / CVD Coated Carbide Inserts , Carbide Tool Inserts With Different Hardness
Description:
Turning inserts are manufactured in a variety of shapes, sizes and thicknesses. The shape can be round to maximize edge strength, diamond-shaped to allow a sharp point to cut fine features, square, or even octagonal to increase the number of separate edges that can be applied as one edge after another wears out.
VKD has plenty of chip breakers to choose which cover the application range from steel, iron cast, stainless steel, aluminum, heat resistant alloy, etc. Those chip breakers can replace the relative ones of , KORLOY, TAEGUTEC, MITSUBISHI, SUMITOMO, TUNGALOY, KROCERA, DIJET, ISCAR etc. DON'T HESITATE TO CONTACT SUPPLER TO GET MORE DETAILS!
Application:
| Insert Application | ||
| Finishing | Universal | Roughing |
| Hard and Wear resistant | Wear Resistant and Tough | Tough and Impact Resistant |
| PVD and CVD Coating | PVD and CVD Coating | PVD and CVD Coating |
| Small Nose radius | Medium Nose Radius | Large Nose Radius |
| Light Honed Edge | Medium Honed Cutting Edge | Heavy Honed Cutting Edge |
| Small Chipbreaker | Medium Chipbreaker | Large Chip Breaker |
|
No.
|
Grade
|
Grade description
|
Grade(Competitors)
|
|
1
|
YBC152
|
CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance.
|
GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY)
|
|
2
|
YB6315
|
CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques.
|
GC4315(), T9115(TUNGALOY)
|
|
3
|
YBC252
|
CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field.
|
GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY)
|
|
4
|
YBD102
|
CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed.
|
UC5115(MITSUBISHI)
|
|
5
|
YBD152
|
CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed.
|
UC5115(MITSUBISHI)
|
|
6
|
YBD152C
|
Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker.
|
UC5115(MITSUBISHI)
|
|
7
|
YB7315
|
CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed.
|
UC5115(MITSUBISHI), WAK20()
|
|
8
|
YBM153
|
CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed.
|
|
|
9
|
YBM253
|
CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed.
|
|
|
10
|
YBG202
|
PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field.
|
|
|
11
|
YBG205
|
PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field.
|
VP15TF(MITSUBISHI)
|
|
12
|
YB9320
|
PVD multilayer coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (grooving/milling).Optimized coating stability for higher wear resistance and thermal stability in a wide application field.
|
|
|
13
|
YNT251
|
Uncoated P10–P25 cermet grade for fine finishing to medium operation of steel and stainless steel. Good wear resistance and toughness. Suitable also in light interrupted cut.
|
|
|
...
|
...
|
DON'T HESITATE TO CONTACT US TO GET MORE DETAILS!
|
...
|
Welcome your inquiry.
