Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001:2015
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: Plastic boxes, then cartons
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10tons per month
Name: |
Coated Carbide Inserts |
Brand Name:: |
VKD |
Brand Name:: |
YBC252/ YBD102 / YBD152 |
Material:: |
Tungsten Carbide |
Color: |
Custom |
Quality:: |
Available |
Name: |
Coated Carbide Inserts |
Brand Name:: |
VKD |
Brand Name:: |
YBC252/ YBD102 / YBD152 |
Material:: |
Tungsten Carbide |
Color: |
Custom |
Quality:: |
Available |

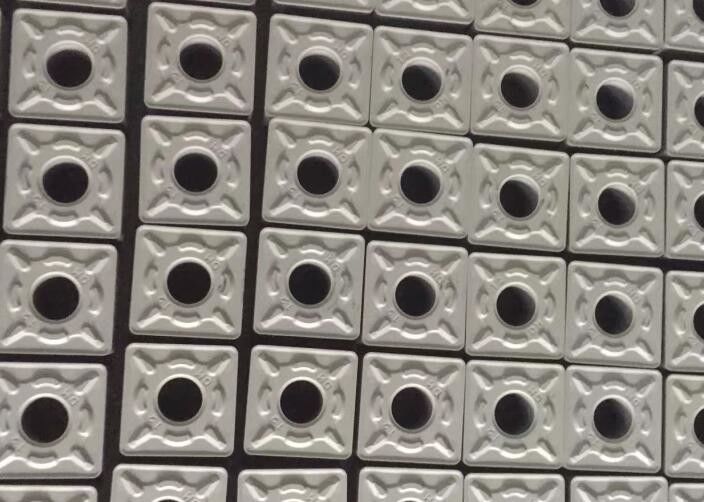

YBC252 YBD102 Tungsten Carbide Inserts Wear Resistance Square Shaped
Application:
1. CNMG160612-DM double-sided chipbreaker with M-level tolerance produces small cutting forces and has large chip breaking range, which ensures good performance for machining highly adhesive alloy steel.
2. CVD coating YBC251 substrats with good toughness and high security of cutting edge, in optional combination wiht coating composed of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable fore steel semi-finishing and Rough machining.
|
NO
|
Chip Breaker
|
Introduction
|
Competitor
(Chip Breaker)
|
|
1
|
PM
|
Double sided chip breaker for medium machining. Wide range of application in steel and cast iron.
|
(PM)
|
|
2
|
DF
|
Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron.
|
(-PF), SECO(-MF1)
|
|
3
|
DM
|
Double sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability.
|
(PM), SECO(MF2), KYOCERA(HQ)
|
|
4
|
DR
|
Double sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron.
|
(PR,QR)
|
|
5
|
EF
|
Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron.
|
KYOCERA(-CF)
|
|
6
|
EM
|
Double sided chip breaker with sharp cutting edge and large rake angle. Process reliable medium machining of stainless steel.
|
TUNGALOY(TM)
|
|
7
|
ER
|
Double sided chip breaker with large rake angle for low cutting forces. Suitable for roughing of stainless steel.
|
(MR,QR)
|
|
8
|
LH
|
Single sided chipbreaker for machining of cast aluminium alloys. Sharp cutting edge with positive rake angle. G-tolerance for high repeatability.
|
KORLOY(AR)
|
|
9
|
LC
|
Single sided chip breaker with excellent cutting edge design. Sharp cutting edge with positive rake angle. G-tolerance for
|
KORLOY(AK)
|
|
10
|
HF
|
Single sided chip breaker with good chip control. Suitable for finishing to medium machining of steel and cast iron.
|
MITSUBISHI
(FJ,FV), KYOCERA(CF)
|
|
11
|
HM
|
Single sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability.
|
MITSUBISHI
(FJ,FV), KYOCERA(CF)
|
|
12
|
HR
|
Single sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron.
|
(MR,QR,PR)
|
|
13
|
TC
|
Double sided chip breaker with surrounding cutting edge. Process reliable machining due to highest cutting edge stability.
|
MITSUBISHI
(GH)
|
|
...
|
...
|
DON'T HESITATE TO CONTACT US TO GET MORE DETAILS!
|
...
|
| No. | Grade | Grade description | Grade(Competitors) |
| 1 | YBC152 | CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance. | GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY) |
| 2 | YB6315 | CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques. | GC4315(), T9115(TUNGALOY) |
| 3 | YBC252 | CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field. | GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY) |
| 4 | YBD102 | CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. | UC5115(MITSUBISHI) |
| 5 | YBD152 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. | UC5115(MITSUBISHI) |
| 6 | YBD152C | Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker. | UC5115(MITSUBISHI) |
| 7 | YB7315 | CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. | UC5115(MITSUBISHI), WAK20() |
| 8 | YBM153 | CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 9 | YBM253 | CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed. | |
| 10 | YBG202 | PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field. | |
| 11 | YBG205 | PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field. | VP15TF(MITSUBISHI) |
| 12 | YB9320 | PVD multilayer coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (grooving/milling).Optimized coating stability for higher wear resistance and thermal stability in a wide application field. | |
| 13 | YNT251 | Uncoated P10–P25 cermet grade for fine finishing to medium operation of steel and stainless steel. Good wear resistance and toughness. Suitable also in light interrupted cut. | |
| ... | ... | DON'T HESITATE TO CONTACT US TO GET MORE DETAILS! | ... |
Welcome your inquiry.
