Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001:2015
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: Plastic boxes, cartons
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10tons per month
Brand Name: |
VKD |
Material: |
Tungsten Carbidecarbide Milling Inserts |
Usage: |
External Turning Tool |
Hardness: |
HV2000 |
Coating: |
PVD CVD |
Certificate: |
SO9001:2015 |
Quality: |
100% Original Of VKD |
Brand Name: |
VKD |
Material: |
Tungsten Carbidecarbide Milling Inserts |
Usage: |
External Turning Tool |
Hardness: |
HV2000 |
Coating: |
PVD CVD |
Certificate: |
SO9001:2015 |
Quality: |
100% Original Of VKD |

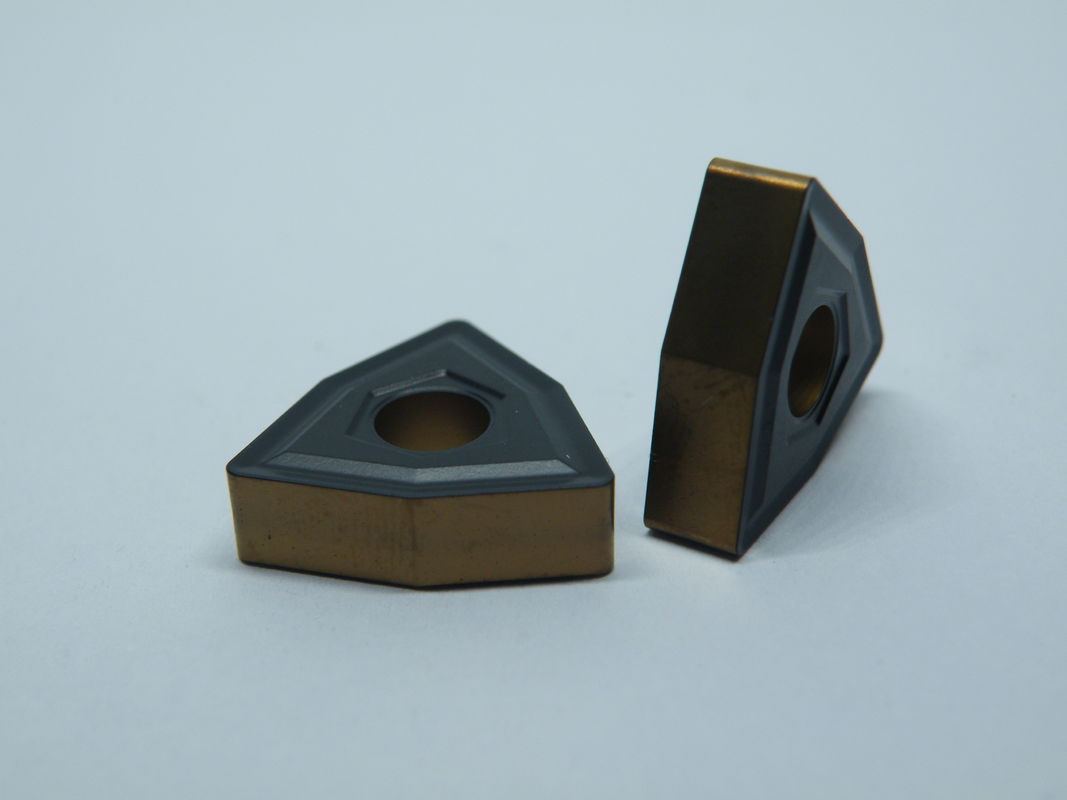

High Strength Triangle Carbide Inserts , Custom Carbide Inserts HV2000 Hardness
Application:
CVD coated grade, which is the combination of hard substrate and coating (medium thick AL2O3+thick TiCN), has good flaking resistance. It is suitable for turning and milling of cast iron at high speed, and light intermittent cutting can be supported even at moderate speed. It is also suitable for milling of cast iron.
The combination for thick coating and substrate with good hardness and impact resistance gives the inserts excellent impact resistance and stability under high temperature, and improves wear resistance of inserts. Inserts also satisfied the requirements of high speed and high feed rate when machining cast iron.
VKD has plenty of chip breakers to choose which cover the application range from steel, iron cast, stainless steel, aluminum, heat resistant alloy, etc. Those chip breakers can replace the relative ones of , KORLOY, TAEGUTEC, MITSUBISHI, SUMITOMO, TUNGALOY, KROCERA, DIJET, ISCAR etc. DON'T HESITATE TO CONTACT SUPPLER TO GET MORE DETAILS!
|
NO
|
Chip Breaker
|
Introduction
|
Competitor
(Chip Breaker)
|
|
1
|
PM
|
Double sided chip breaker for medium machining. Wide range of application in steel and cast iron.
|
(PM)
|
|
2
|
DF
|
Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron.
|
(-PF), SECO(-MF1)
|
|
3
|
DM
|
Double sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability.
|
(PM), SECO(MF2), KYOCERA(HQ)
|
|
4
|
DR
|
Double sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron.
|
(PR,QR)
|
|
5
|
EF
|
Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron.
|
KYOCERA(-CF)
|
|
6
|
EM
|
Double sided chip breaker with sharp cutting edge and large rake angle. Process reliable medium machining of stainless steel.
|
TUNGALOY(TM)
|
|
7
|
ER
|
Double sided chip breaker with large rake angle for low cutting forces. Suitable for roughing of stainless steel.
|
(MR,QR)
|
|
8
|
LH
|
Single sided chipbreaker for machining of cast aluminium alloys. Sharp cutting edge with positive rake angle. G-tolerance for high repeatability.
|
KORLOY(AR)
|
|
9
|
LC
|
Single sided chip breaker with excellent cutting edge design. Sharp cutting edge with positive rake angle. G-tolerance for
|
KORLOY(AK)
|
|
10
|
HF
|
Single sided chip breaker with good chip control. Suitable for finishing to medium machining of steel and cast iron.
|
MITSUBISHI
(FJ,FV), KYOCERA(CF)
|
|
11
|
HM
|
Single sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability.
|
MITSUBISHI
(FJ,FV), KYOCERA(CF)
|
|
12
|
HR
|
Single sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron.
|
(MR,QR,PR)
|
|
13
|
TC
|
Double sided chip breaker with surrounding cutting edge. Process reliable machining due to highest cutting edge stability.
|
MITSUBISHI
(GH)
|
|
...
|
...
|
DON'T HESITATE TO CONTACT US TO GET MORE DETAILS!
|
...
|
|
No.
|
Grade
|
Grade description
|
Grade(Competitors)
|
|
1
|
YBC152
|
CVD coated P10–P20 carbide grade for finishing to medium operation of steel and casting steel. Outstanding performance under higher cutting speed and temperature with excellent wear resistance.
|
GC4315(), E6020(MITSUBISHI), T9125(TUNGALOY)
|
|
2
|
YB6315
|
CVD coating grade combining nano dioxygen gradient transition techniques and crystal nucleus pre-insertion techniques.
|
GC4315(), T9115(TUNGALOY)
|
|
3
|
YBC252
|
CVD coated P20–P35 carbide grade for medium operation to roughing of steel and casting steel. Optimal performance of wear resistance and toughness for a wide application field.
|
GC4325(),E6020(MITSUBISHI),T9125(TUNGALOY)
|
|
4
|
YBD102
|
CVD coated K05–K20 carbide substrate. Optimized for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed.
|
UC5115(MITSUBISHI)
|
|
5
|
YBD152
|
CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed.
|
UC5115(MITSUBISHI)
|
|
6
|
YBD152C
|
Thick Al2O3 CVD coated K05–K25 carbide substrate. Optimized for medium to roughing operation of cast iron.Higher wear resistance and toughness at higher cutting speed in combination with TC chip breaker.
|
UC5115(MITSUBISHI)
|
|
7
|
YB7315
|
CVD coated K10–K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed.
|
UC5115(MITSUBISHI), WAK20()
|
|
8
|
YBM153
|
CVD coated M10–M25 carbide grade for fnishing to medium application in stainless steel. High wear resistance and capability against plasctic deformation at higher cutting speed.
|
|
|
9
|
YBM253
|
CVD coated M15–M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plasctic deformation at higher cutting speed.
|
|
|
10
|
YBG202
|
PVD coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field.
|
|
|
11
|
YBG205
|
PVD multilayer coated M20–M40/S15–S25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field.
|
VP15TF(MITSUBISHI)
|
|
12
|
YB9320
|
PVD multilayer coated M10–M25/P10–P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (grooving/milling).Optimized coating stability for higher wear resistance and thermal stability in a wide application field.
|
|
|
13
|
YNT251
|
Uncoated P10–P25 cermet grade for fine finishing to medium operation of steel and stainless steel. Good wear resistance and toughness. Suitable also in light interrupted cut.
|
|
|
...
|
...
|
DON'T HESITATE TO CONTACT US TO GET MORE DETAILS!
|
...
|
Products Introduction
CNC blade is main made from carbide tungsten, Co and TaC grain. Environmental protection, high efficiency, energy saving, recyclable. It is resistance high temperature, durable, corrosion resistant and high strength, superior to traditional HSS. Carbide woodturning cutter is widely used in handwork and lathe work.
Products Advantage
1. Replacement cutter to reduce the frequency of replacing blades with longest working life.
2. Environmental protection, high efficiency, energy saving, recyclable.
3. Complete specifications for choose in stock.
4. Easy to operate and easy to use.
Welcome your inquiry.
