Product Details
Place of Origin: Zhuzhou
Brand Name: VKD
Certification: ISO9001:2008
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiable
Packaging Details: paper box,carton
Delivery Time: 10-20 work days
Payment Terms: L/C, T/T,
Supply Ability: 50tons per month
Features: |
High Hardness,good Wear / Impact Resistance |
Grade: |
YG6/YG6X/YG8/YG8X/YG10X/YG15 |
Density: |
14.2-15.0 |
Hardness: |
87HRA-92.0 HRA |
T.R.S: |
1800MPa-4000Mpa |
Products Name: |
Carbide Strips |
Size: |
Customized |
Material: |
100% Virgin Raw Material |
Application: |
Cutting Tool |
Features: |
High Hardness,good Wear / Impact Resistance |
Grade: |
YG6/YG6X/YG8/YG8X/YG10X/YG15 |
Density: |
14.2-15.0 |
Hardness: |
87HRA-92.0 HRA |
T.R.S: |
1800MPa-4000Mpa |
Products Name: |
Carbide Strips |
Size: |
Customized |
Material: |
100% Virgin Raw Material |
Application: |
Cutting Tool |

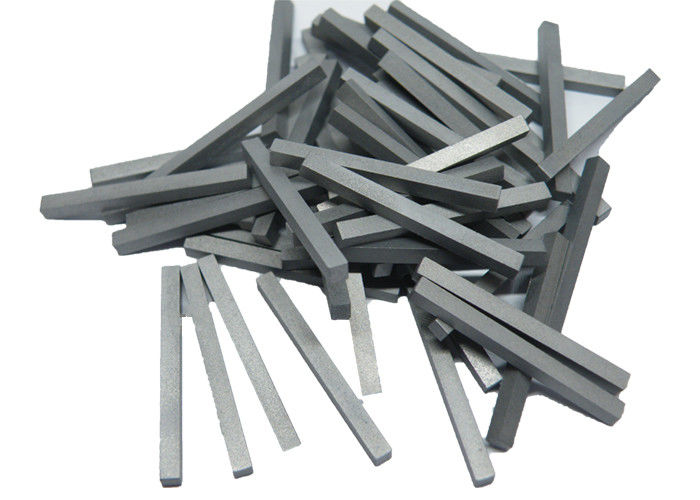

Grey ,Tungsten Carbide Strips 87-92.0 Hardness, With High Wear / Impact Resistance
Description:
Tungsten carbide strip is available for different grinding geometric parameters and suitable for both cutting materials and nonmetal materials, also it can be applied to conventional,carbide inserts, semi-automatic lathe, automatic lathe and planning machine to work grooves and operate cutting, etc.We can customize different types of tungsten carbide strips
Application:
1.Suitable for treating solid wood, shaving board and middle-density fiberboard.
2.Be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blade.
Grade:
|
Properties and applications of tungsten carbide strips
|
||||||||
| Grade | Density | T.R.S MPa |
Hardness HRA |
Performance & application recommended | ||||
| YG6 | 14.9 | 2150 | 90 |
Good wear resistance, used for hard wood, used for processing original wood, aluminum section bar, brass rod and cast iron. |
||||
| YG6A | 14.9 | 1860 | 92 |
Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum section bar, brass rod and cast iron. |
||||
| YG8 | 14.7 | 2320 | 89.5 |
Wear and percussion resistance , used for processing hard wood, soft wood, ferrous and non-ferrous. |
||||
| YS2T | 14.5 | 2350 | 92 |
Fine carbide, High wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. |
||||
| YS25 | 14.5 | 2150 | 92.2 |
Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous,metal and non-metallid materials. |
||||
| YG10X | 14.45 | 91.8 | 3000 | Wear resistance and strength comparatively higher,suitable for maching cast iron,non-ferrous metal and non-metallid materials | ||||
|
Other grades of strips may be offered according to customers' requirement.
|
||||||||
| Type | T*W*L (mm) | T (mm) | W (mm) | L (mm) |
| VKD05 | T x 5 x 320 | 2.0~15.0 | 5 | 320 |
| VKD06 | T x 6 x 320 | 2.0~15.0 | 6 | 320 |
| VKD07 | T x 7 x 320 | 2.0~15.0 | 7 | 320 |
| VKD08 | T x 8 x 320 | 2.0~15.0 | 8 | 320 |
| VKD09 | T x 9 x 320 | 2.0~15.0 | 9 | 320 |
| VKD10 | T x 10 x 320 | 2.0~15.0 | 10 | 320 |
| VKD11 | T x 11 x 320 | 2.0~15.0 | 11 | 320 |
| VKD12 | T x 12 x 320 | 2.0~15.0 | 12 | 320 |
| VKD13 | T x 13 x 320 | 2.0~15.0 | 13 | 320 |
| VKD14 | T x 14 x 320 | 2.0~15.0 | 14 | 320 |
| VKD15 | T x 15 x 320 | 2.0~15.0 | 15 | 320 |
| VKD16 | T x 16 x 320 | 2.0~15.0 | 16 | 320 |
| VKD17 | T x 17 x 320 | 2.0~15.0 | 17 | 320 |
| VKD18 | T x 18 x 320 | 2.0~15.0 | 18 | 320 |
| VKD19 | T x 19 x 320 | 2.0~15.0 | 19 | 320 |
| VKD20 | T x 20 x 320 | 2.0~15.0 | 20 | 320 |
| VKD22 | T x 22 x 320 | 2.0~15.0 | 22 | 320 |
| VKD25 | T x 25 x 320 | 2.0~15.0 | 25 | 320 |
| VKD28 | T x 28 x 320 | 2.0~15.0 | 28 | 320 |
| VKD30 | T x 30 x 320 | 2.0~15.0 | 30 | 320 |
| VKD32 | T x 32 x 320 | 2.0~15.0 | 32 | 320 |
| VKD35 | T x 35 x 320 | 2.0~15.0 | 35 | 320 |
| VKD40 | T x 40 x 320 | 2.0~15.0 | 40 | 320 |
| VKD45 | T x 45 x 320 | 2.0~15.0 | 45 | 320 |
| VKD50 | T x 50 x 320 | 2.0~15.0 | 50 | 320 |
