Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO9001:2008
Model Number: custom made
Payment & Shipping Terms
Minimum Order Quantity: Negotiate
Price: Negotiable
Packaging Details: paper box,carton
Delivery Time: 10-20 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50tons per month
Products Name: |
Tungsten Carbide Flat Bar |
Color: |
Gray |
Size: |
Customized |
Material: |
100% Virgin Raw Material |
Grain Size: |
0.6um-32um |
Application: |
Cutting Tool |
Products Name: |
Tungsten Carbide Flat Bar |
Color: |
Gray |
Size: |
Customized |
Material: |
100% Virgin Raw Material |
Grain Size: |
0.6um-32um |
Application: |
Cutting Tool |

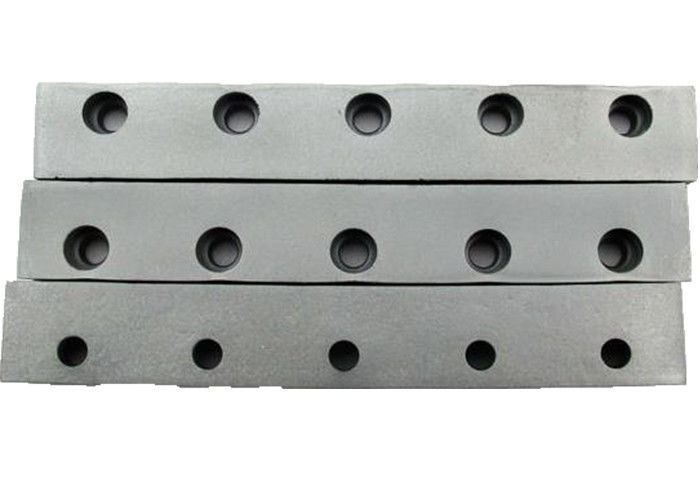

Various Dimensions Tungsten Carbide Flats With High Wear / Impact Resistance
Advantages of tungsten carbide strip
1. We offer a various of dimensions for tungsten carbide strip, and we also produce tungsten carbides in various grades and surface conditions.
2. The tungsten carbide strip can also be specially designed according to customers’ design. with over 18 years of manufacturing experience.
3. Before shipping out, all the products must be inspected strictly with the ultrasonic.
4. High density, high wear and impact resistance lead them a long lifetime.
5. There are some senior engineers who have specialized in tungsten carbid area for over years.
|
Properties and applications of tungsten carbide strips
|
||||||||
| Grade | Density | T.R.S MPa |
Hardness HRA |
Performance & application recommended | ||||
| YG6 | 14.9 | 2150 | 90 |
Good wear resistance, used for hard wood, used for processing original wood, aluminum section bar, brass rod and cast iron. |
||||
| YG6A | 14.9 | 1860 | 92 |
Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum section bar, brass rod and cast iron. |
||||
| YG8 | 14.7 | 2320 | 89.5 |
Wear and percussion resistance , used for processing hard wood, soft wood, ferrous and non-ferrous. |
||||
| YS2T | 14.5 | 2350 | 92 |
Fine carbide, High wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. |
||||
| YS25 | 14.5 | 2150 | 92.2 |
Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous,metal and non-metallid materials. |
||||
| YG10X | 14.45 | 91.8 | 3000 | Wear resistance and strength comparatively higher,suitable for maching cast iron,non-ferrous metal and non-metallid materials | ||||
|
Other grades of strips may be offered according to customers' requirement.
|
||||||||
| Type | T*W*L (mm) | T (mm) | W (mm) | L (mm) |
| VKD05 | T x 5 x 320 | 2.0~15.0 | 5 | 320 |
| VKD06 | T x 6 x 320 | 2.0~15.0 | 6 | 320 |
| VKD07 | T x 7 x 320 | 2.0~15.0 | 7 | 320 |
| VKD08 | T x 8 x 320 | 2.0~15.0 | 8 | 320 |
| VKD09 | T x 9 x 320 | 2.0~15.0 | 9 | 320 |
| VKD10 | T x 10 x 320 | 2.0~15.0 | 10 | 320 |
| VKD11 | T x 11 x 320 | 2.0~15.0 | 11 | 320 |
| VKD12 | T x 12 x 320 | 2.0~15.0 | 12 | 320 |
| VKD13 | T x 13 x 320 | 2.0~15.0 | 13 | 320 |
| VKD14 | T x 14 x 320 | 2.0~15.0 | 14 | 320 |
| VKD15 | T x 15 x 320 | 2.0~15.0 | 15 | 320 |
| VKD16 | T x 16 x 320 | 2.0~15.0 | 16 | 320 |
| VKD17 | T x 17 x 320 | 2.0~15.0 | 17 | 320 |
| VKD18 | T x 18 x 320 | 2.0~15.0 | 18 | 320 |
| VKD19 | T x 19 x 320 | 2.0~15.0 | 19 | 320 |
| VKD20 | T x 20 x 320 | 2.0~15.0 | 20 | 320 |
| VKD22 | T x 22 x 320 | 2.0~15.0 | 22 | 320 |
| VKD25 | T x 25 x 320 | 2.0~15.0 | 25 | 320 |
| VKD28 | T x 28 x 320 | 2.0~15.0 | 28 | 320 |
| VKD30 | T x 30 x 320 | 2.0~15.0 | 30 | 320 |
| VKD32 | T x 32 x 320 | 2.0~15.0 | 32 | 320 |
| VKD35 | T x 35 x 320 | 2.0~15.0 | 35 | 320 |
| VKD40 | T x 40 x 320 | 2.0~15.0 | 40 | 320 |
| VKD45 | T x 45 x 320 | 2.0~15.0 | 45 | 320 |
| VKD50 | T x 50 x 320 | 2.0~15.0 | 50 | 320 |
Specification of Tungsten Carbide Strip
1. YG6A YG8 YG6 YG10X grades are for your chioce.
2. OEM/ODM accepted.
3. Samples available.
4. 100% virgin materials.
5. Factory price.
