Product Details
Place of Origin: zhuzhou
Brand Name: VKD
Certification: ISO14001:2015
Model Number: as customers'requirement
Payment & Shipping Terms
Minimum Order Quantity: negotiate
Price: Negotiable
Packaging Details: paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10tons/month
Hardness: |
>=91.5 |
Grain Size: |
0.8um |
Type: |
Solid Carbide Rod |
TRS: |
>=3800 |
Size: |
D4--D30 Length 330mm And 310mm |
Application: |
End Mill , Drill ,cutting Tool |
Surface: |
Unground |
Place Of Origin: |
Hunan, China (Mainland) |
Model Number: |
Custom-made |
Particle: |
0.5-1.0um |
Hardness: |
>=91.5 |
Grain Size: |
0.8um |
Type: |
Solid Carbide Rod |
TRS: |
>=3800 |
Size: |
D4--D30 Length 330mm And 310mm |
Application: |
End Mill , Drill ,cutting Tool |
Surface: |
Unground |
Place Of Origin: |
Hunan, China (Mainland) |
Model Number: |
Custom-made |
Particle: |
0.5-1.0um |

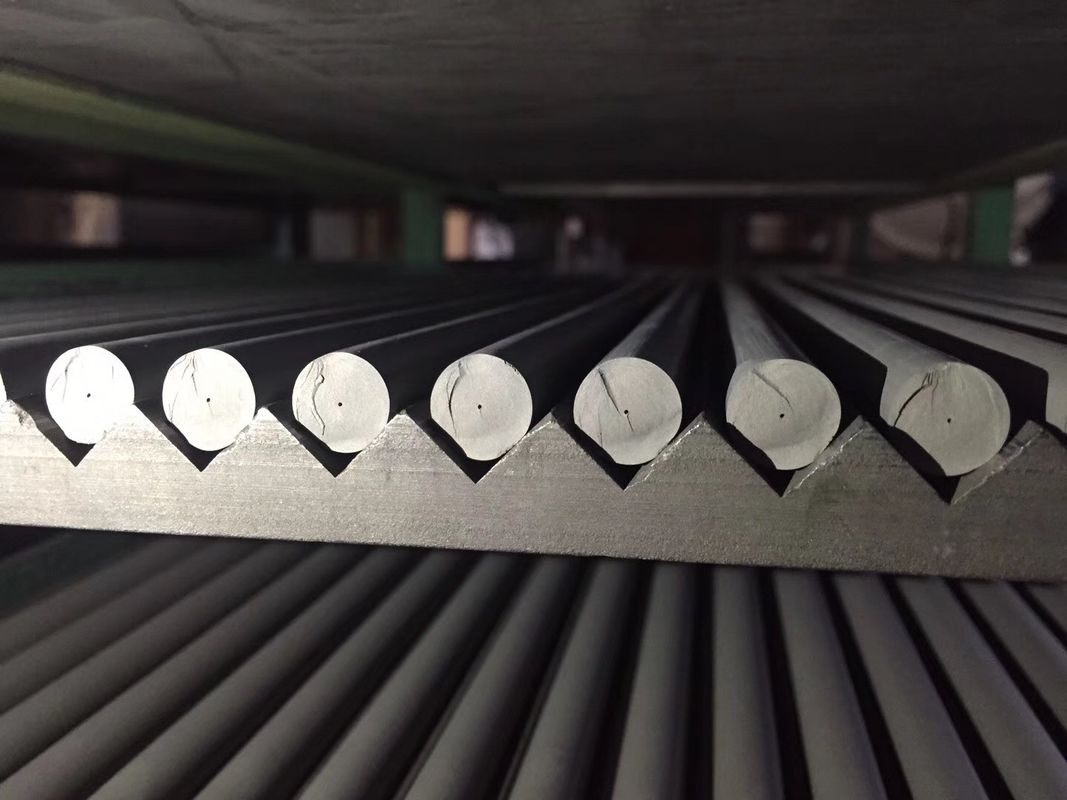

YG10X YL10.2 Tungsten Carbide Rod Blanks And Grinding ISO 14001 Approved
We offer:
1. Pressed and extruded and CIP unground,ground and polished rods with or without chamfer.
2. Rod products that can be ground to H6 tolerance.
3, Tungsten carbide rods are mainly used for end mills,remaers,drills,countersinks,engraving tools,routers
and other rotary tools.
4. Also we provide other sizes upon request. Please contact us if you need a size customized.
The specification range of blank and grinding tungsten carbide rod:
1. WC Grain size range: 0.4~0.6μ.m; 0.6~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
2. Diameter range: 3mm--40mm;
3. Length range: 3mm--350mm;
4. Diameter Grade: h5(H5), h6(H6), h7(H7), h8(H8), h9(H9).
5. Sphericity tolerance range: 0.001mm ~ 0.009mm;
6. Linearity tolerance range: 0.001mm~0.2mm;
7. Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after accurate grinding)
As to Solid carbide rods, Why choose us?
1, Our Monthly output is 30 tons.
2, Certificated by,ISO 9001:2008,ISO14001:2015
3. Our products are produced by good performance.
4. 100% QC inspection before shippment.
5,We can produce the non-standard items according to your samples and drawings.
Production Process:
Below are the production processes of tungsten carbide rods, to ensure high quality, we assureed our
customers that:
1. All materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
Recommended Grade:
|
Grade
|
Grain size(μm) | Density(g/cm³) | Hardness(>=HRA) | TRS |
|
YG10X
|
0.8 | 14.5 | >=91.5 | >=3800 |
|
YL10.2
|
0.8 | 14.42 | >=91.5 | >=4000 |
|
VKD25
|
0.6 | 14.03 | >=92.0 | >=4000 |
Dimension and Tolerance
|
Dimension
|
Tolerance of diameter(mm) | Tolerance of length(mm) |
|
BL-Φ4.0×330
|
+0.3/+0.5 | +0/+5.0 |
|
BL-Φ6.0×330
|
||
|
BL-Φ8.0×330
|
||
|
BL-Φ10.0×330
|
||
|
BL-Φ10.0×330
|
+0.30/+0.70
|
+0/+5.0
|
|
BL-Φ12.0×330
|
||
|
BL-Φ14.0×330
|
||
|
BL-Φ16.0×330
|
||
|
BL-Φ18.0×330
|
+0.40/+1.0
|
+0/+5.0
|
|
BL-Φ20.0×330
|
||
|
BL-Φ22.0×330
|
||
|
BL-Φ24.0×330
|
||
|
BL-Φ26.0×330
|
||
|
BL-Φ28.0×330
|
||
|
BL-Φ30.0×330
|
Our Guarantee:
1. high quality durable tungsten carbide round bar /rod blanks/cemented rods for milling for router bits made from
100% virgin raw material.
2. produced with advanced equipments and process.
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.
6. Quality Control System and strict inspection.
7. OEM and ODM are accepted as well.
8. Undertake orders of non-standard sizes at customer's requests.
Welcome your inquiry.
